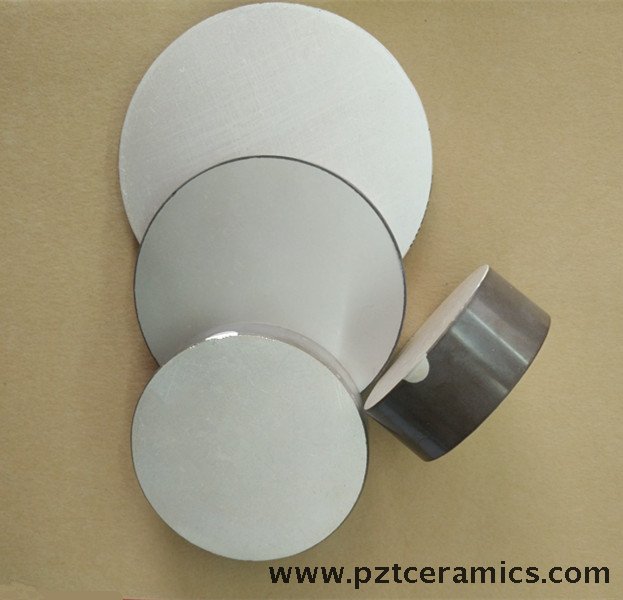

Piezoelectric Ceramic Disc Componnet
Piezoelectric ceramics are used to convert mechanical parameters, such as pressure and acceleration, into electrical parameters or, conversely, to convert electrical signals to mechanical movement or vibration.The piezoelectric ceramic disc component material is PZT-5, this material is a soft PZT material, high sensitivity or soft ceramics feature high sensitivity and permittivity, but under high drive conditions are susceptible to self heating beyond their operating temperature range. These materials are used in various pick-ups and sensors, low-power motor-type transducer, receivers, and low power generators. Suitable for applications in the fields of sensor technology, actuator technology, and air-coupled ultrasound.

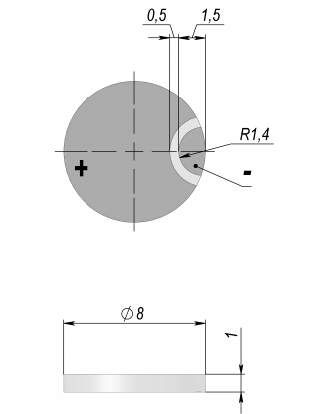

Models and Technical Data:
| Article No. | Radial frequency (khz) | Coupling coefficient (kp%) | Capacity C(pf) | Piezoelectric changing constant d33 | Agent wear Tg(%) |
| JDCP-P51-100002 | 192±5% | 65 | 770±10% | 580 | 2 |
| JDCP-P51-120002 | 160±5% | 65 | 1200±10% | 580 | 2 |
| JDCP-P51-150002 | 128±5% | 65 | 2140±10% | 580 | 2 |
| JDCP-P51-200002 | 97±5% | 65 | 3700±10% | 580 | 2 |
| JDCP-P51-250002 | 77±5% | 65 | 5800±10% | 580 | 2 |
| JDCP-P51-400002 | 49±5% | 65 | 14500±10% | 580 | 2 |
| JDCP-P51-450002 | 43±5% | 65 | 19380±10% | 580 | 2 |
| JDCP-P51-500002 | 39±5% | 65 | 23830±10% | 550 | 2 |
| JDCP-P51-281406 | 46±5% | 65 | 1840±10% | 550 | 2 |
| JDCP-P51-301006 | 48±5% | 65 | 2500±10% | 560 | 2 |
| JDCP-P51-301206 | 46±5% | 65 | 2360±10% | 560 | 2 |
| JDCP-P51-301406 | 44±5% | 65 | 2200±10% | 560 | 2 |
| JDCP-P51-341206 | 42±5% | 65 | 3160±10% | 560 | 2 |
| JDCP-P51-341406 | 40±5 | 65 | 3000±10% | 560 | 2 |
| JDCP-P51-381505 | 37±5% | 65 | 4570±10% | 560 | 2 |
| JDCP-P51-381506 | 37±5% | 65 | 3800±10% | 560 | 2 |
*All products can be customized according to customer requirements.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.
We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
Research and Development Institute: www.xjtcyjy.com
Certifications:

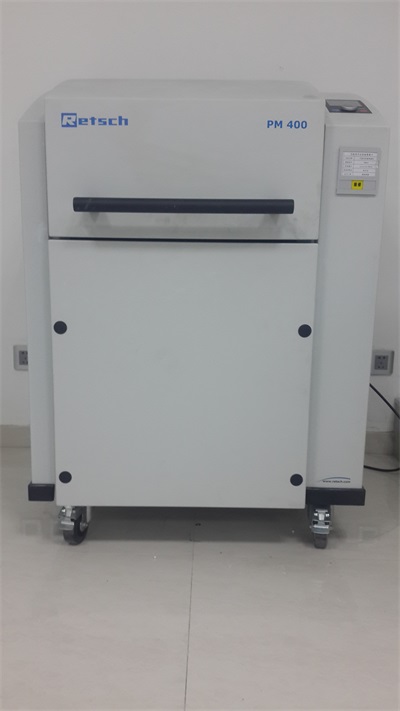

Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact us:
E-mail:sales@pztceramics.com
Tel/Fax:+86 0536 2221236
Website:www.pztceramics.com
