JDCC-P51-201615
JUDE

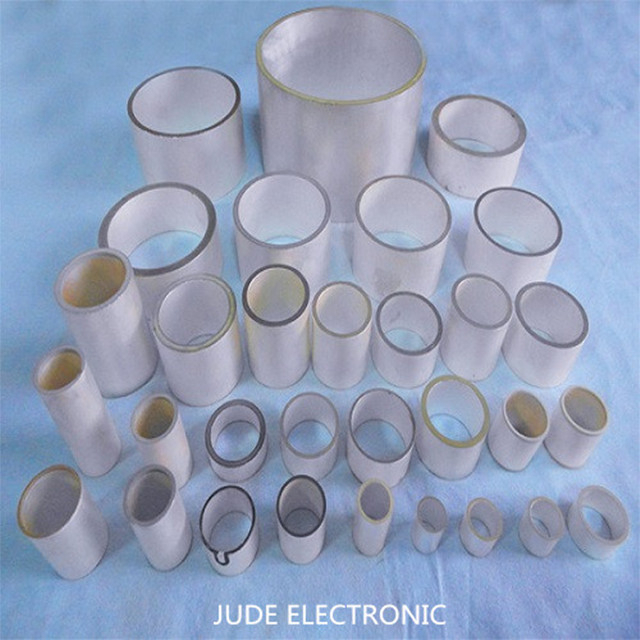

JUDE Piezoelectric Ceramic Tube (Cylinder) Elements
Specification and technical datas as following：
| Article No. | Radial frequency (khz) | Coupling coefficient (k31%) | Capacity C(pf) | Piezoelectric changing constant d33 | Agent wear Tg(%) |
| JDCC-P51-151110 | 70±5% | 30 | 4680±10% | 500 | 2 |
| JDCC-P51-201615 | 50±5% | 30 | 9700±10% | 500 | 2 |
| JDCC-P51-252115 | 39±5% | 35 | 12400±10% | 500 | 2 |
| JDCC-P51-292520 | 34±5% | 35 | 19400±10% | 550 | 2 |
| JDCC-P51-302518 | 33±5% | 35 | 14250±10% | 550 | 2 |
| JDCC-P51-322820 | 36±5% | 35 | 21600±10% | 550 | 2 |
| JDCC-P51-343020 | 28±5% | 35 | 23000±10% | 550 | 2 |
| JDCC-P51-383225 | 26±5% | 35 | 21000±10% | 550 | 2 |
| JDCC-P51-403237 | 25±5% | 35 | 24000±10% | 550 | 2 |
| JDCC-P51-453925 | 22±5% | 35 | 25200±10% | 550 | 2 |
| JDCC-P51-504425 | 19±5% | 35 | 28200±10% | 550 | 2 |
| JDCC-P51-553930 | 19±5% | 35 | 33800±10% | 550 | 2 |
| JDCC-P51-605430 | 16±5% | 35 | 41000±10% | 550 | 2 |
| JDCC-P51-655930 | 15±5% | 35 | 44600±10% | 550 | 2 |
| JDCC-P51-756716 | 13±5% | 35 | 20400±10% | 550 | 2 |
| JDCC-P51-807420 | 12±5% | 35 | 36900±10% | 550 | 2 |
| JDCC-P51-908420 | 10±5% | 35 | 52180±10% | 550 | 2 |
Application:
Ultrasonic flaw detecting
Non-destructive testing
Thickness measuring
Metal detecting
Certifications:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
