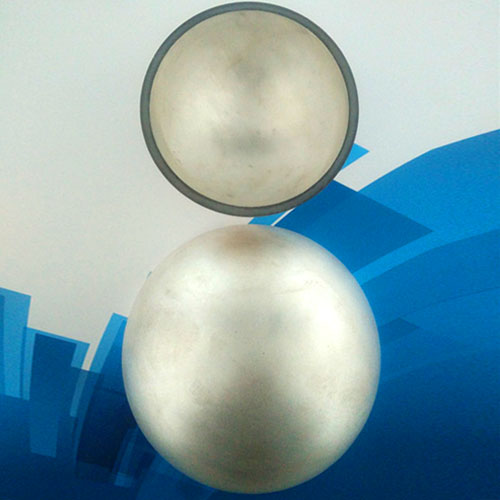

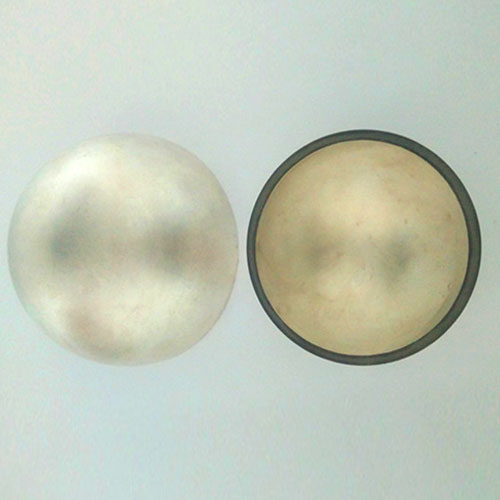

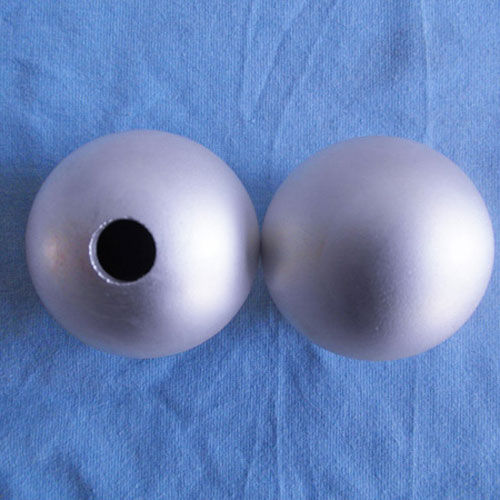

Piezoelectric ceramic sphere and hemisphere component
Piezoelectric ceramic components, such as plates, disks or Piezoelectric ceramic rings, convert mechanical signals, such as force, pressure, strain or acceleration, into electrical voltage, or, vice versa, an electrical voltage into mechanical motion or oscillations. The shapes and dimensions of the piezoelectric components can be selected within the limits determined by the tools, although the dimensions depend on each other. The minimum dimensions are determined by physical and technological limits. The thickness or wall thickness, for example, is limited by the mechanical strength of the ceramic during machining. In the polarization direction, the dimension is at most 30 mm.
| Brand name: | JUDE |
| Model No: | JPCQ-P-4-152 |
| Material: | P-4 |
| MOQ: | Negotiable |
| Payment: | T/T, L/C |
| Order Delivery Time: | Within 30 working days |
| Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature: Good stability
High sensitivity
All direction
Accurate measurement
Models and Technical Data:
| Type | Radial Frequency Fr(KHz) | Coupling constant (  )% | Static capacitance C(PF) | Piezoelectric changing constant (  CN) | Agent wear Tg(%) |
| JPCQ-P-4-152 | 150±5% | ≥0.35 | 65000±15% | >300 | <3 |
| JPCQ-P-4-101 | 220±5% | ≥0.35 | 45000±15% | >300 | <3 |
| JPCQ-P-4-76.2 | 350±5% | ≥0.35 | 22000±15% | >300 | <3 |
| JPCQ-P-4-55.6 | 410±5% | ≥0.35 | 18000±15% | >300 | <3 |
| JPCQ-P-4-25.4 | 780±5% | ≥0.35 | 8000±15% | >300 | <3 |
| JPCQ-P-4-08 | 3100±5% | ≥0.35 | 900±15% | >300 | <3 |
*All products can be customized according to customer requirements.
Application: Used in all-round underwater acoustic and sonar transducer
High sensitivity ultrasonic detection field
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certification:

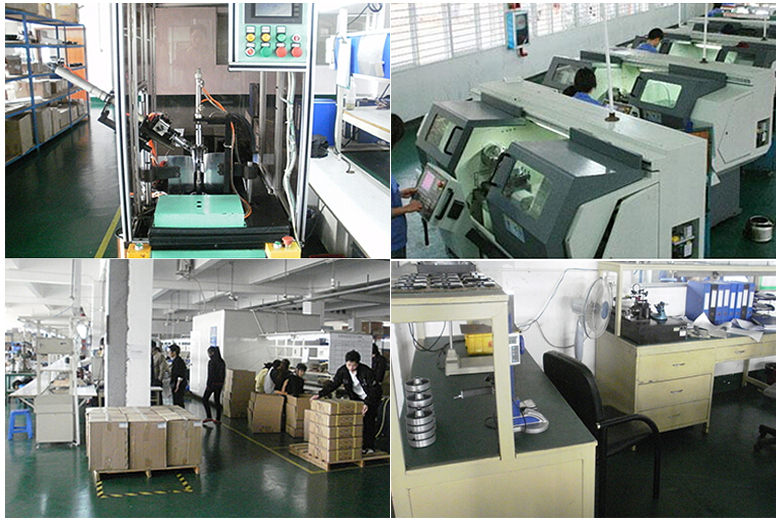

Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
Sales@pztceramics.com
86-0536-2221236
www.pztceramics.com
www.cnjude.com
