JDCQ-P41-252200
JUDE

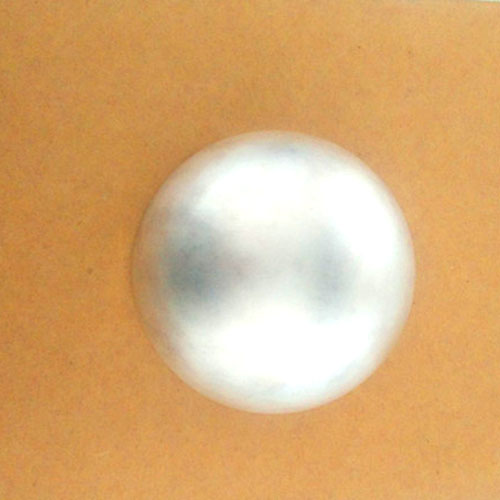

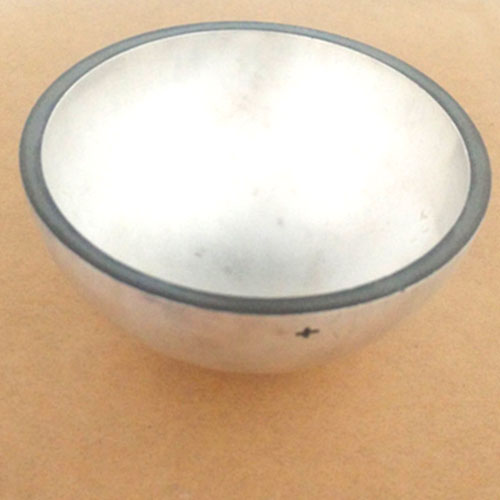

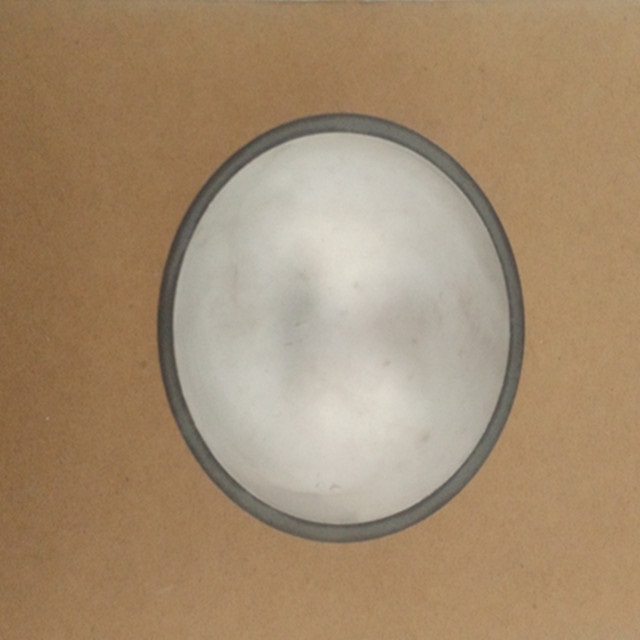

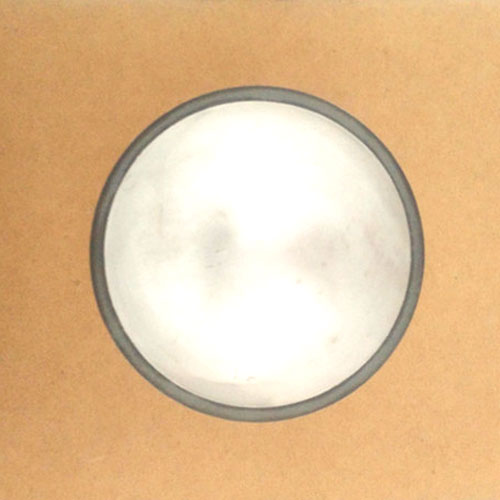

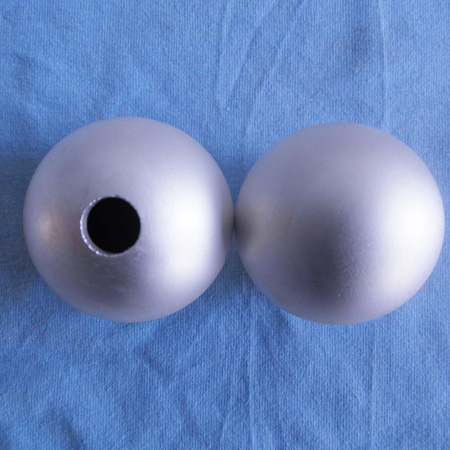

Piezoelectric Ceramic Sphere and Hemisphere Component
Piezoelectric ceramic components, such as plates, disks or Piezoelectric ceramic rings, convert mechanical signals, such as force, pressure, strain or acceleration, into electrical voltage, or, vice versa, an electrical voltage into mechanical motion or oscillations.
The typical resonant frequencies are between 200 kHz and 10 MHz.
| Brand name: | JUDE |
| Model No: | JDCQ-P41-252200 |
| Material: | P-41 |
| MOQ: | Negotiable |
| Payment: | T/T, L/C |
| Order Delivery Time: | Within 30 working days |
| Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature: Good stability
High sensitivity
Accurate measuring
Specification:
| Type | Radial Frequency Fr(KHz) | Resonant Impedance (Ω) | Coupling Constant K31(%) | Capacity (PF) ±10% |
| JDCQ-P41-201700 | 90±5% | ≤ 15 | ≥0.35 | 7500±10% |
| JDCQ-P41-080600 | 575±5% | ≤ 15 | ≥0.30 | 850±10% |
| JDCQ-P41-252200 | 90±5% | ≤ 10 | ≥0.30 | 6500±10% |
| JDCQ-P41-766800 | 56±5% | ≤ 10 | ≥0.30 | 2200±10% |
| JDCQ-P41-101940 | 40±5% | ≤ 10 | ≥0.30 | 95000±10% |
Material:PZT-4 :A modified binary zirconium titanic material.
Low dielectric loss and mechanical friction, a high
Electro-mechanical coupling factor and piezoelectric moulds.
Size:Example: JDCQ-P41-201700
Outer diameter is 20mm
Inner diameter is 17mm
Thickness is 3mm
*All products can be customized according to customer requirements.
Application: All round underwater transducer
Sonar transducer
High sensitive ultrasonic surveying
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certification:

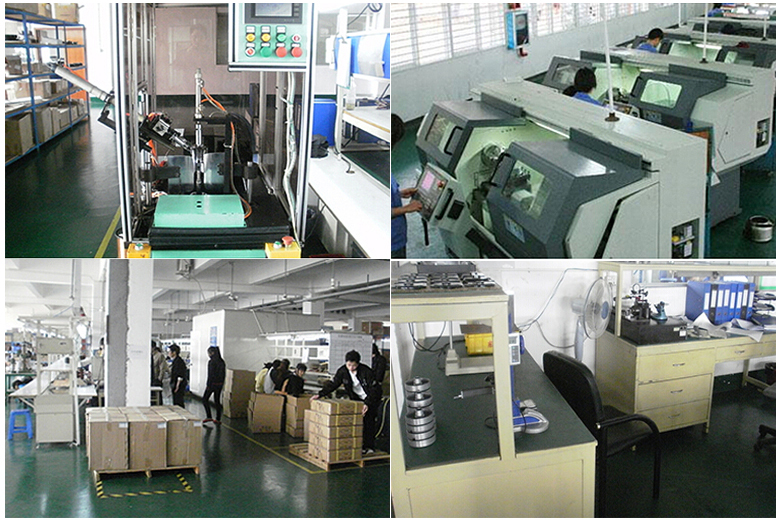

Factory:
Shipping:
Contact us:
E-mail:sales@pztceramics.com
Tel/Fax:+86 0536 2221236
Website:www.pztceramics.com
