JDCC-P81-150603
JUDE

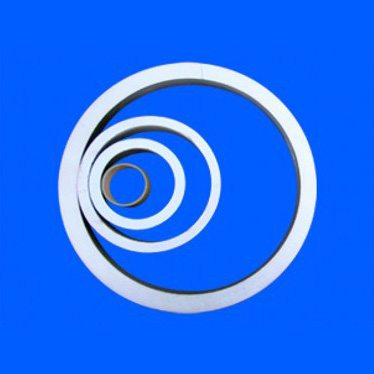

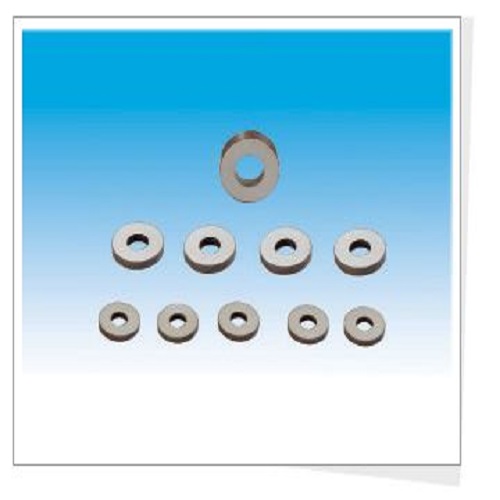

Piezoelectric Ceramic Ring Element
Piezoelectric ceramic components, such as plates, disks or piezoelectric ceramic rings, convert mechanical signals, such as force, pressure, strain or acceleration, into electrical voltage, or, vice versa, an electrical voltage into mechanical motion or oscillations.
The typical resonant frequencies are between 200 kHz and 10 MHz.
| Brand name: | JUDE |
| Model No: | JDCC-P81-120603 |
| Material: | P-81 |
| MOQ: | Negotiable |
| Payment: | T/T, L/C |
| Order Delivery Time: | Within 30 working days |
| Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature: High quality
High sensitivity
Specification:
| Article No. | Radial frequency (khz) | Resonant impedance (Ω) | Coupling coefficient (k31%) | Capacity C(pf) | Piezoelectric changing constant d33 |
| JDCC-P81-120603 | 128±5% | ≤20 | 40 | 200±10% | 260 |
| JDCC-P81-150603 | 109±5% | ≤18 | 40 | 498±10% | 260 |
| JDCC-P81-200603 | 88±5% | ≤15 | 40 | 912±10% | 260 |
| JDCC-P81-251003 | 66±5% | ≤22 | 42 | 1310±10% | 260 |
| JDCC-P81-251006 | 66±5% | ≤24 | 42 | 660±10% | 260 |
| JDCC-P81-301506 | 50±5% | ≤20 | 40 | 850±10% | 260 |
| JDCC-P81-302004 | 44±5% | ≤18 | 40 | 1170±10% | 260 |
| JDCC-P81-351505 | 46±5% | ≤15 | 43 | 1500±10% | 260 |
| JDCC-P81-351506 | 46±5% | ≤17 | 43 | 1250±10% | 260 |
| JDCC-P81-381505 | 44±5% | ≤15 | 43 | 1800±10% | 260 |
| JDCC-P81-451506 | 39±5% | ≤12 | 43 | 1800±10% | 270 |
| JDCC-P81-500003 | 50±5% | ≤5 | 45 | 5150±10% | 270 |
| JDCC-P81-501706 | 34±5% | ≤15 | 43 | 2750±10% | 270 |
| JDCC-P81-502006 | 33±5% | ≤20 | 40 | 2600±10% | 260 |
| JDCC-P81-502306 | 32±5% | ≤20 | 40 | 2300±10% | 250 |
| JDCC-P81-603010 | 26±5% | ≤28 | 36 | 1900±10% | 240 |
| JDCC-P81-703010 | 23±5% | ≤25 | 36 | 2800±10% | 240 |
*All products can be customized according to customer requirements.
Application: Ultrasonic cleaning transducer
Ultrasonic welding transducer
Ultrasonic hole drilling transducer
Surgical knives
We specialize in piezoelectric ceramics rings and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certifications:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing.
Contact:
E-mail: sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
