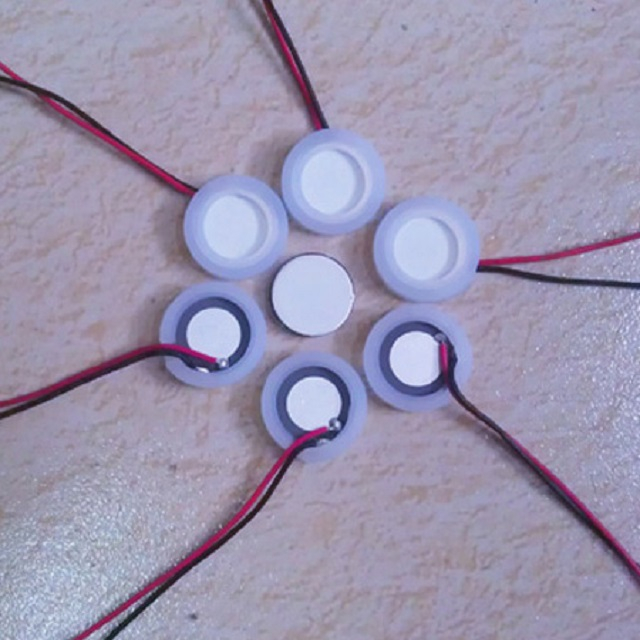

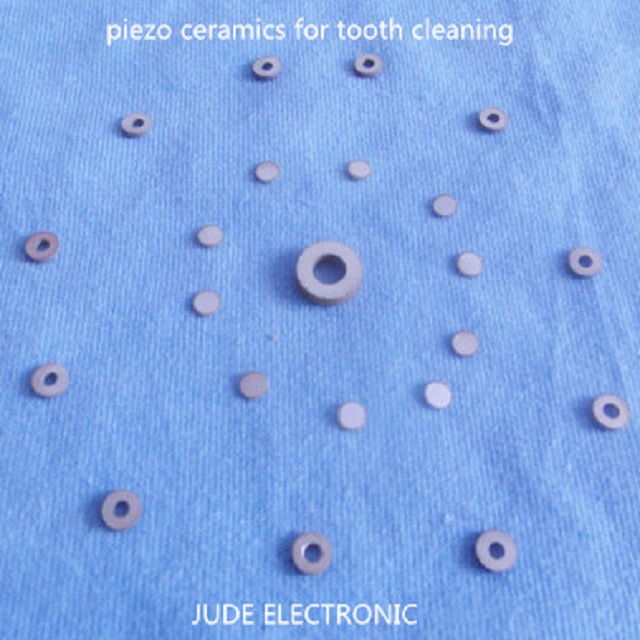

Piezoelectric ceramic for tooth cleaning and medical atomizers
| Brand name: | JUDE |
| Model No: | JDCA-PN3-160001 |
| Material: | PN-3 |
| MOQ: | Negotiable |
| Payment: | T/T, L/C |
| Order Delivery Time: | Within 30 working days |
| Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature: High strength electrode
Long service life
Large Atomization
Not easy to fouling
Good consistency
Models and Technical Data:
Type | Radial Frequency Fr(KHz) | Resonant Impedance Rt(%) | Coupling Constant Kp(%) | Static Capacitance C(PF) |
| JDCA-PN3-160001 | 1.65±5% | ≤ 2 | ≥46 | 770±10% |
| JDCA-PN3-200001 | 1.65±5% | ≤ 2 | ≥46 | 1450±10% |
| JDCA-PN3-250001 | 1.65±5% | ≤ 2 | ≥46 | 1800±10% |
| JDCA-PN3-200002 | 1.0±5% | ≤ 2 | ≥65 | 1800±10% |
| JDCA-PN3-250002 | 1.0±5% | ≤ 2 | ≥65 | 2800±10% |
| JDCA-PN3-280002 | 1.0±5% | ≤ 2 | ≥65 | 3500±10% |
| JDCA-PN8-100502 | 1.0±5% | ≤ 20 | ≥35 | 280±10% |
| JDCA-PN3-100502 | 1.0±5% | ≤ 20 | ≥40 | 380±10% |
*All products can be customized according to customer requirements.
Application: Atomizing
Medical scanning
Cosmetology
Tooth cleaning
Plaque removal
We specialize in piezoelecrtric ceramics and sensors for 20 years, with good quality and competitive price.
The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Contact us:
E-mail:sales@pztceramics.com
Tel/Fax:+86 0536 2221236
Website:www.pztceramics.com
