JDCC-P51-252115
JUDE

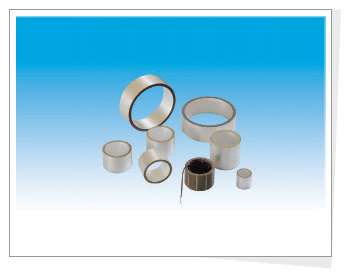

Piezoelectric Ceramic Tube(Cylinder) Component
Piezoelectric ceramic components, such as plates, disks or Piezoelectric ceramic rings, convert mechanical signals, such as force, pressure, strain or acceleration, into electrical voltage, or, vice versa, an electrical voltage into mechanical motion or oscillations.
The typical resonant frequencies are between 200 kHz and 10 MHz.
| Brand name: | JUDE |
| Model No: | JDCC-P51-252115 |
| Material: | P-51 |
| MOQ: | Negotiable |
| Payment: | T/T, L/C |
| Order Delivery Time: | Within 30 working days |
| Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature:High sensitivity
All direction
Specification:
| Article No. | Radial frequency (khz) | Coupling coefficient (k31%) | Capacity C(pf) | Piezoelectric changing constant d33 | Agent wear Tg(%) |
| JDCC-P51-151110 | 70±5% | 30 | 4680±10% | 500 | 2 |
| JDCC-P51-201615 | 50±5% | 30 | 9700±10% | 500 | 2 |
| JDCC-P51-252115 | 39±5% | 35 | 12400±10% | 500 | 2 |
| JDCC-P51-292520 | 34±5% | 35 | 19400±10% | 550 | 2 |
| JDCC-P51-302518 | 33±5% | 35 | 14250±10% | 550 | 2 |
| JDCC-P51-322820 | 36±5% | 35 | 21600±10% | 550 | 2 |
| JDCC-P51-343020 | 28±5% | 35 | 23000±10% | 550 | 2 |
| JDCC-P51-383225 | 26±5% | 35 | 21000±10% | 550 | 2 |
| JDCC-P51-403237 | 25±5% | 35 | 24000±10% | 550 | 2 |
| JDCC-P51-453925 | 22±5% | 35 | 25200±10% | 550 | 2 |
| JDCC-P51-504425 | 19±5% | 35 | 28200±10% | 550 | 2 |
| JDCC-P51-553930 | 19±5% | 35 | 33800±10% | 550 | 2 |
| JDCC-P51-605430 | 16±5% | 35 | 41000±10% | 550 | 2 |
| JDCC-P51-655930 | 15±5% | 35 | 44600±10% | 550 | 2 |
| JDCC-P51-756716 | 13±5% | 35 | 20400±10% | 550 | 2 |
| JDCC-P51-807420 | 12±5% | 35 | 36900±10% | 550 | 2 |
| JDCC-P51-908420 | 10±5% | 35 | 52180±10% | 550 | 2 |
Size:
JDCC-P51-252112 | 25 | outside diameter |
| 21 | inner diameter | |
| 12 | thickness |
Certifications:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact us:
E-mail:sales@pztceramics.com
Tel/Fax:+86 0536 2221236
Website:www.pztceramics.com
