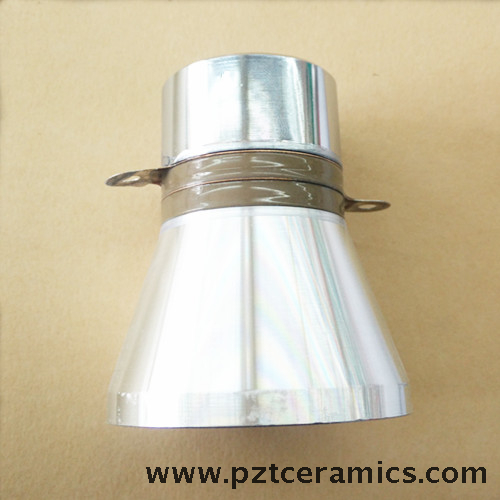

Ultrasonic Cleaning Transducer
Brand name: | JUDE |
Model No: | JD5938D-28H |
Material: | PZT |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Ultrasonic cleaning transducer works by creating cavitation in a cleaning liquid by means of high-power ultrasonic waves. Cavitation is the formation of tiny local gas bubbles, which implode again after a very short period of time. The cavitation intensively cleans the contaminated surface of the substance, even with complicated shapes.
Feature:High quality
High sensitivity
Models and Techanical Data:
Type | Radial Frequency fr(KHz) | Resonance impedance Rt(%) | capacity C(pf) | Power output w |
JD4535D-28H | 28 | 15 | 4000 | 50 |
JD4535D-40H | 40 | 15 | 4000 | 50 |
JD5938D-28H | 28 | 12 | 5000 | 60 |
JD3938D-40H | 40 | 8 | 5000 | 50 |
JD6745D-25H | 25 | 15 | 6500 | 100 |
JD6345D-28H | 28 | 15 | 6500 | 100 |
JD6550D-28H | 28 | 15 | 7000 | 120 |
Size：
JD5938L-28H | JD | Our company code |
59 | Diameter of radiating surface | |
38 | Diameter of PZT | |
L | Two pieces PZT crystal | |
28 | Resonance frequency | |
H | trumpet-shape radiating surface |
*All products can be customized according to customer requirements.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.
We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
Research and Development Institute:www.xjtcyjy.com
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail: sales@pztceramics.com
WhatsApp:+86 13165361320
Tel/Fax: +86-0536-2221236
Website: www.pztceramics.com
