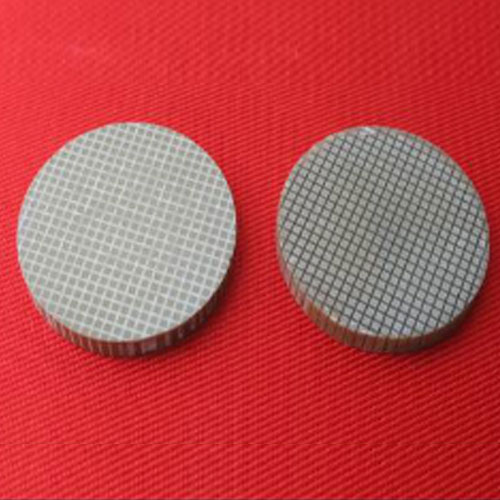

Piezoelectric Composite Material for Acoustic Transducer

Piezoelectric composite material

The resonance frequency of 1-3 piezoelectric composite materials and 2-2 piezoelectric composites materials we produced can be designed from 50 kHz to 2000 kHz. According to the requirements, we can produce multi-function and various shapes piezoelectric composite materials such as rectangle, circle, circular tube and spherical cap structure. So far, the piezoelectric composite materials have been widely applied to the preparation of acoustic transducernondestructive testing probe and ocean detection sensor, etc.

Brand name:

JUDE

Model No:

Piezoelectric composite material

MOQ:

Negotiable

Payment:

T/T, L/C

Order Delivery Time:

Within 30 working days

Transportation:

By air via express company, like DHL, TNT, UPS, EMS

composite material (2).jpgcomposite material (5).jpg

Models and Technical Data:

Material type

Volume fraction of piezoelectric ceramics

Piezoelectric changing constant

(10-12C/N)

Electromechanical coupling constant

Kt(%)

Mechanical quality constant

Qm

Density

ρ(103kg/m3)

Acoustic impedance

ZMrayl

UJN-PCM51

15-85

260-350

55-75

6-30

2.8-6.6

7-25

UJN-PCM41

15-85

140-210

55-78

135-320

3.2-6.8

8-20

Application:acoustic transducer
                     non-destructive testing probe
                     ocean detection sonar

 *All products can be customized according to customer requirements.

We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.

Certification:

certification

Factory:

factory (1)

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC. Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing.

shipping (1)
