Piezoelectric Composite Material Transducer

  • jude
  Piezoelectric Composite Material Transducer

Features:
High electric coupling constant
               Low agent wear
               Small mechanical quality constant
               Low acoustic impedance
Applications:Transducer
                                 Feature: High sensitivity
                                              Wide work frequency band
                                          Large detection range
                                 Application:Fish finder sonar
                                                   Collision avoidance sonar
                                                   3D imaging sonar
                                                   Side scan sonar
                                                   Anti-frogman sonar

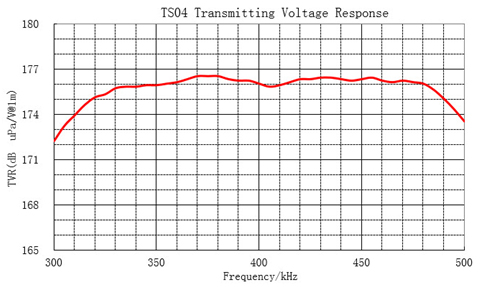

 4-(2)
Center frequency 400kHz,transmitting voltage response 176dB,bandwidth190kHz

Directivity(@300kHz)

4-(3)4-(4)
   Horizontal directivity 2θ-3dB=5°                                  Vertical directivity 2θ-3dB=5.5


Water Conductivity
number Resonant frequency Resonance point conductance 400kHzconductance Static capacitance
kHz mS mS nF
piezoelectric composite material transducer 354 6 3.5 4.4
