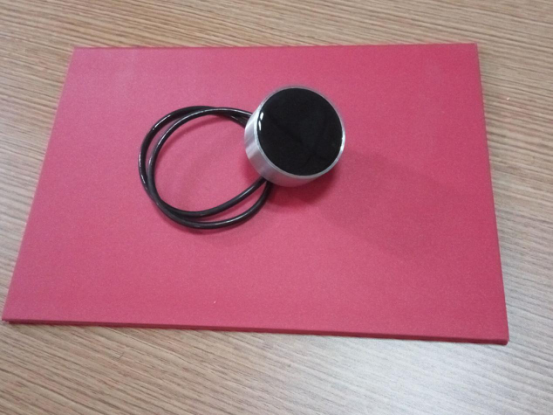

Piezoelectric Composite Material Transducer
| Brand name: | JUDE |
| Model No: | Piezoelectric composite material transducer |
| Material: | PZT |
| MOQ: | Negotiable |
| Payment: | T/T, L/C |
| Order Delivery Time: | Within 30 working days |
| Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature: High electric coupling constant
Low agent wear
Small mechanical quality constant
Low acoustic impedance
Specification:

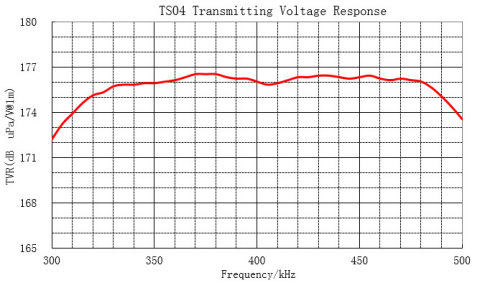

Center frequency 400kHz,transmitting voltage response 176dB，bandwidth190kHz

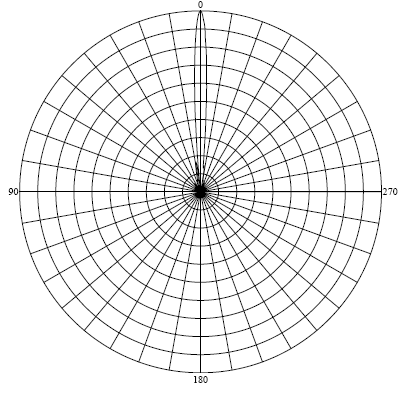

Directivity:
Horizontal directivity 2θ-3dB=5° Vertical directivity 2θ-3dB=5.5°
Water Conductivity:
| number | Resonant frequency | Resonance point conductance | 400kHzconductance | Static capacitance |
| kHz | mS | mS | nF | |
| piezoelectric composite material transducer | 354 | 6 | 3.5 | 4.4 |
Application: Fish finder sonar
Collision avoidance sonar
3D image sonar
Side scan sonar
*All products can be customized according to customer requirements.
