Piezoelectric Ceramic Tube

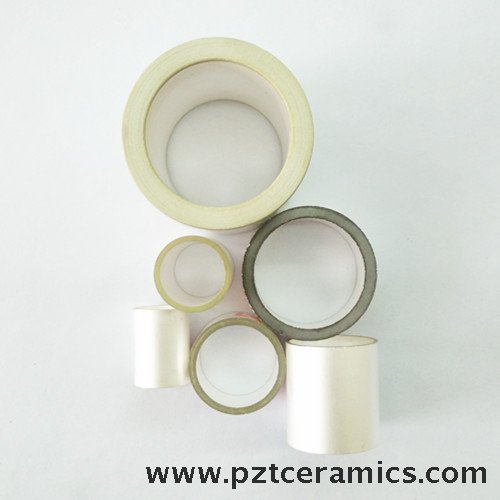

Piezoelectric Ceramic Tube(Cylinder) Elements

Piezoelectric ceramic tube element usually used for underwater transducer for fishfinders, fishfinders are usually constructed with piezoelectric ceramic components of various shape and sizes depending on the application. Materials for simple sonars could be the hard type of the piezoelectric ceramics, like PZT-4, PZT-8. They provide high power density and high sensitivity.

Brand name:	JUDE
Model No:	JPCQ-P-4-152
Material:	P-5
MOQ:	Negotiable
Payment:	T/T, L/C
Order Delivery Time:	Within 30 working days
Transportation:	By air via express company, like DHL, TNT, UPS, EMS

Feature:High sensitivity

              All direction

Models and Technical Data:

Type	Radial Frequency Fr(KHz)	Coupling constant (k31)%	Static capacitance C(PF)	Piezoelectric changing constant d3310-12(CN)	Agent wear Tg(%)
JPCC-P51-151110	70±5%	30	4680±10%	500	2
JPCC-P51-201615	50±5%	30	9700±10%	500	2
JPCC-P51-252115	39±5%	35	12400±10%	500	2
JPCC-P51-292520	34±5%	35	19400±10%	550	2
JPCC-P51-302518	33±5%	35	14250±10%	550	2
JPCC-P51-322820	36±5%	35	21600±10%	550	2
JPCC-P51-343020	28±5%	35	23000±10%	550	2
JPCC-P51-383225	26±5%	35	21000±10%	550	2
JPCC-P51-403237	25±5%	35	24000±10%	550	2
JPCC-P51-453925	22±5%	35	25200±10%	550	2
JPCC-P51-504425	19±5%	35	28200±10%	550	2
JPCC-P51-553930	19±5%	35	33800±10%	550	2
JPCC-P51-605430	16±5%	35	41000±10%	550	2
JPCC-P51-655930	15±5%	35	44600±10%	550	2
JPCC-P51-756716	13±5%	35	20400±10%	550	2
JPCC-P51-807420	12±5%	35	36900±10%	550	2
JPCC-P51-908420	10±5%	35	52180±10%	550	2

SIZE:

JPCC-P51-151110	15	Outside diameter
	11	Inner diameter
	10	Thickness

Application:Flaw detecting

                    Thickness measuring

                    Flow measuring

                    Ultrasonic Testing Sensor

*All products can be customized according to customer requirements.

Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.

We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.

Research and Development Institute:www.xjtcyjy.com

Certification:

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
