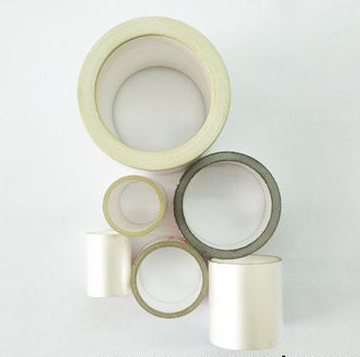

Piezoelectric Ceramic Tube Element
Piezoelectric ceramic tube element usually used for underwater transducer for fishfinders, fishfinders are usually constructed with piezoelectric ceramic components of various shape and sizes depending on the application. Materials for simple sonars could be the hard type of the piezoelectric ceramics, like PZT-4, PZT-8. They provide high power density and high sensitivity.
Brand name: | JUDE |
Model No: | JPCQ-P45-32 |
Material: | P-45 |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
The specifications of piezo tube:
Outer diameter: 82.6mm
Inner diameter: 68.1mm
Height: 32.1mm
Material: P-45
Frequency: 13.7KHz (Radial)
Models and Technical Data:
Num | Resonance Frequency Fs(Hz) | Antiresonance frequency FP(Hz) | Bandwidth Fp-Fs(Hz) | Capacitance CT(nf) | Impedance R1(ohm) | Electromechanical coupling coefficient KP | d33 |
| 1 | 13368 | 14200 | 832 | 13.14048 | 20.45 | 0.397 | 389 |
| 2 | 13680 | 14300 | 620 | 13.27561 | 18.62 | 0.339 | 392 |
| 3 | 13392 | 14200 | 808 | 13.04371 | 21.88 | 0.391 | 395 |
| 4 | 13424 | 14180 | 756 | 13.10704 | 17.43 | 0.377 | 390 |
| 5 | 13344 | 14160 | 816 | 13.20265 | 13.69 | 0.393 | 389 |
*All products can be customized according to customer requirements.
