Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components. We have our own factory, experienced technical staff. And cooperate with the domestic first-class universities, establish a piezoelectric ceramics R&D room to develop new product and improve product quality.

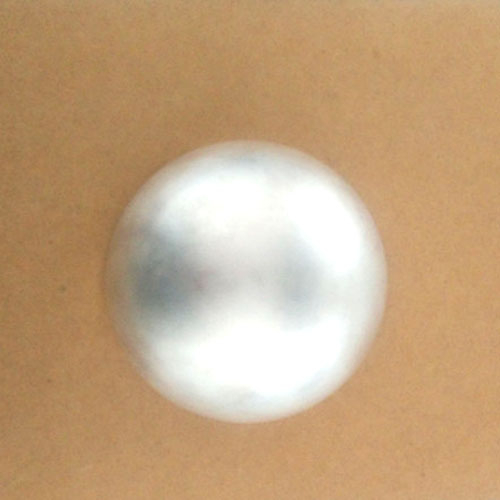

Piezoelectric Ceramic Spherical and Hemispherical Component
Piezoelectric ceramic components, such as plates, disks or Piezoelectric ceramic rings, convert mechanical signals, such as force, pressure, strain or acceleration, into electrical voltage, or, vice versa, an electrical voltage into mechanical motion or oscillations. The typical resonant frequencies are between 200 kHz and 10 MHz.
Our modern manufacturing processes allow us to make piezoelectric ceramics components of th ehighest quality and in large quantities. Our company-wide quality management system ensures that the products we offer meet or exceed all of your expections.
Brand name: | JUDE |
Model No: | JPCQ-P-4-152 |
Material: | P-4 |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature: Good stability
High sensitivity
All direction
Accurate measurement
Application: Used in all-round underwater acoustic and sonar transducer
High sensitivity ultrasonic detection field
Models and Technical Data:
Type | Radial Frequency Fr(KHz) | Coupling constant (k31)% | Static capacitance C(PF) | Piezoelectric changing constant d3310-12(CN) | Agent wear Tg(%) |
JPCQ-P-4-152 | 150±5% | ≥0.35 | 65000±15% | >300 | <3 |
JPCQ-P-4-101 | 220±5% | ≥0.35 | 45000±15% | >300 | <3 |
JPCQ-P-4-76.2 | 350±5% | ≥0.35 | 22000±15% | >300 | <3 |
JPCQ-P-4-55.6 | 410±5% | ≥0.35 | 18000±15% | >300 | <3 |
JPCQ-P-4-25.4 | 780±5% | ≥0.35 | 8000±15% | >300 | <3 |
JPCQ-P-4-08 | 3100±5% | ≥0.35 | 900±15% | >300 | <3 |
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price.
The company achieves the ISO9001 Certification.
Our products have been exported to USA, UK, AUSTRIAL, CANADA, SOUTH AFRICA and MIDEAST etc. If you are looking for a reliable and long term cooperation partner, please don't hesitate to contact us. We look forward to cooperate with you in future.
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail：sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
