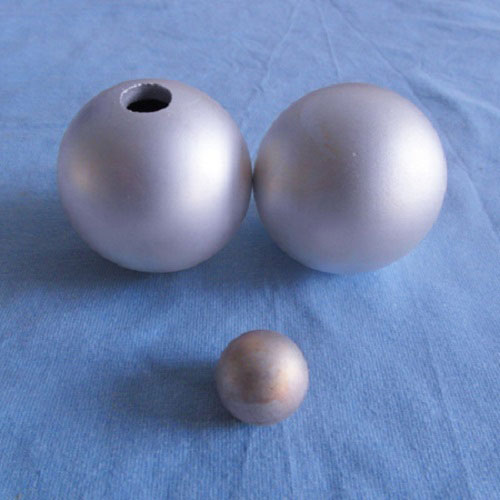

Piezoelectric ceramic sphere and hemisphere PZT-4 component
Piezoelectric ceramics PZT-4 is mainly used in the manufacture of the ultrasonic transducer, an acoustic transducer, fish detector, hydrophone, ultrasound knife, cleaning machine, content gage, and so on. In addition, it is also used in the high-tech field. It is more for people in daily life service, strive to create a better life for people.
Piezoelectric ceramic components, such as plates, disks or Piezoelectric ceramic rings, convert mechanical signals, such as force, pressure, strain or acceleration, into electrical voltage, or, vice versa, an electrical voltage into mechanical motion or oscillations. The typical resonant frequencies are between 200 kHz and 10 MHz.
The piezoelectric elements are frequently used for generating ultrasonic oscillations, for example, in sensors or for high-power ultrasonic applications.The shapes and dimensions of the piezoelectric components can be selected within the limits determined by the tools, although the dimensions depend on each other. The minimum dimensions are determined by physical and technological limits. The thickness or wall thickness, for example, is limited by the mechanical strength of the ceramic during machining. In the polarization direction, the dimension is at most 30 mm.
Weifang Jude is China top 3 piezoelectric manufacturers, providing high-quality piezoelectric products.
Brand name: | JUDE |
Model No: | JPCQ-P-4-152 |
Material: | P-4 |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature: Good stability
High sensitivity
All direction
Accurate measurement
Application: Used in all-round underwater acoustic and sonar transducer
High sensitivity ultrasonic detection field
Models and Technical Data:
Type | Radial Frequency Fr(KHz) | Coupling constant (k31)% | Static capacitance C(PF) | Piezoelectric changing constant d3310-12(CN) | Agent wear Tg(%) |
JPCQ-P-4-152 | 150±5% | ≥0.35 | 65000±15% | >300 | <3 |
JPCQ-P-4-101 | 220±5% | ≥0.35 | 45000±15% | >300 | <3 |
JPCQ-P-4-76.2 | 350±5% | ≥0.35 | 22000±15% | >300 | <3 |
JPCQ-P-4-55.6 | 410±5% | ≥0.35 | 18000±15% | >300 | <3 |
JPCQ-P-4-25.4 | 780±5% | ≥0.35 | 8000±15% | >300 | <3 |
JPCQ-P-4-08 | 3100±5% | ≥0.35 | 900±15% | >300 | <3 |
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing.
Contact:
E-mail: sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
