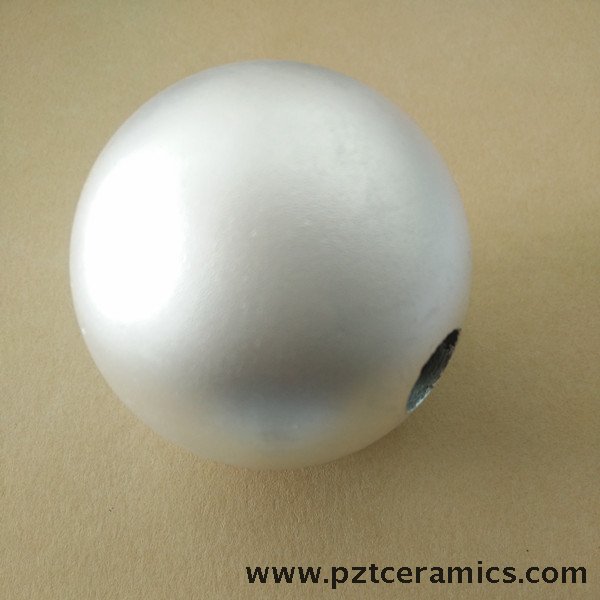

Piezoelectric Ceramic Sphere And Hemisphere Components

Piezoelectric Ceramic Sphere and Hemisphere Components

Piezoelectric ceramics components are electromechanical transducers. They can convert mechanical energy into erlectrical energy and vice-versa. Piezoelectric ceramics components are used in a variety of electromechanical transducer in a wide frequency range.piezoelectric ceramic shpere and hemisphere cxomponents are made by PZT-4 material, this material range is ideally suited for ultrasonic  cleaning, sonar, and other high power acoustic radition applications.


Feature:Good stability

             High sensitivity

             Accurate measurement

Applications:All round underwater transducer

                     Sonar transducer

                     High sensitive ultrasonic surveying

Mod els and Technical Data:
Model Radial frequency
Resonant impedance
Coupling coefficient
JDCQ-P41-201700 90±5% ≤15 ≥0.35 7500
JDCQ-P41-080600 575±5% ≤15 ≥0.30 850
JDCQ-P41-252200 90±5% ≤10 ≥0.30 6500
JDCQ-P41-766800 56±5% ≤10 ≥0.30 2200
JDCQ-P41-101940 40±5% ≤10 ≥0.30 9500


1.material:PZT-4 A modified binary zirconium titanicmaterail.low dielectric loss and mechanical internal friction,a high electro-mechanical coupling factor and piezoelectric moulds.

2.size : Example: JDCQ-P41-201700 , outer diameter is 20mm ,inner diameter is 17 ,thickness is 03mm, others the same as this.

3.Prices is our favorite factory price without include express fee.

*All products can be customized according to customer requirements.

Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.

We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.

Research and development

Electric drying oven with forced convectionGlove box



Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
