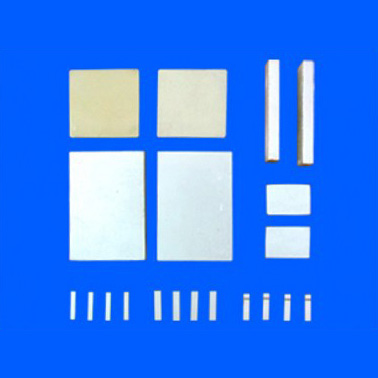

Piezoelectric Ceramic Rectangle
Piezoelectric ceramic components, such as plates, disks or Piezoelectric ceramic rings, convert mechanical signals, such as force, pressure, strain or acceleration, into electrical voltage, or, vice versa, an electrical voltage into mechanical motion or oscillations.
piezoelectric ceramic rectangle component is a simple and easy electrical devices, with high sensitivity, no magnetic field spillover, without copper and magnets, low cost, low power consumption and convenient for mass production
Brand name: | JUDE |
Model No: | JD-PT-12 |
Material: | PZT |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Application:High Frequency Wave Filter
Resonator
Frequency Discriminator
Models and Technical Data:
Type | Frequency Range (MHz) | Frequency Precision (25℃) | Temperature Reliability (-20℃－＋80℃) | Working Temperature (℃) |
JD-PT-12 | 1.80 to 5.999 | ±0.5% | ±0.3% | -20℃－＋80℃ |
JD-PT-71 | 6.00 to 12.99 | ±0.5% | ±0.3% | -20℃－＋80℃ |
JD-PT-72 | 13.0 to 33.86 | ±0.5% | ±0.3% | -20℃－＋80℃ |
Our company produces several piezoelectric ceramic filter material:
Electric coupling consstant (Kp):0.25-0.65
Electric resistance constant (ε33T/ε0):300-3500
Courier temperature (TC):≥470℃, especially for high temperature conditions.
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail: sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
