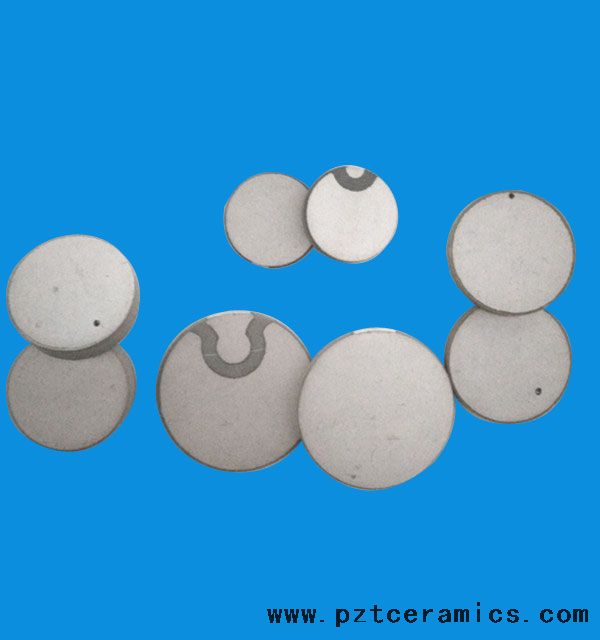

Piezoelectric ceramic disc component
Piezoelectric ceramic disc components is made by PZT-51, this material is often used as the receiver or generator element in hydrophones, accelerometers and vibration sensors.high sensitivity and permittivity, but under high drive conditions are susceptible to self heating beyond their operating temperature range, these materials are used in various pick-up and sensors, low-power motor-type transducer, receivers, and low power generators.
| Brand name: | JUDE |
| Model No: | JPCP-P51-100001 |
| Material: | P-51 |
| MOQ: | Negotiable |
| Payment: | T/T, L/C |
| Order Delivery Time: | Within 30 working days |
| Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature:High quality
High sensitivity
High capacitance
Type:Single side electrode
Two sided electrode
Models and Technical Data:
| Type | Radial Frequency Fr(KHz) | Coupling constant (k31)% | Static capacitance C(pf) | Piezoelectric changing constant d3310-12(CN) | Agent wear Tg(%) |
| JPCP-P51-100001 | 192±5% | 65 | 770±10% | 580 | 2 |
| JPCP-P51-120002 | 160±5% | 65 | 1200±10% | 580 | 2 |
| JPCP-P51-150002 | 128±5% | 65 | 2140±10% | 580 | 2 |
| JPCP-P51-200002 | 97±5% | 65 | 3700±10% | 580 | 2 |
| JPCP-P51-250002 | 77±5% | 65 | 5800±10% | 580 | 2 |
| JPCP-P51-400002 | 49±5% | 65 | 14500±10% | 580 | 2 |
| JPCP-P51-450002 | 43±5% | 65 | 19380±10% | 580 | 2 |
| JPCP-P51-500002 | 39±5% | 65 | 23830±10% | 550 | 2 |
| JPCP-P51-281406 | 46±5% | 65 | 1840±10% | 550 | 2 |
| JPCP-P51-301006 | 48±5% | 65 | 2500±10% | 560 | 2 |
| JPCP-P51-301206 | 46±5% | 65 | 2360±10% | 560 | 2 |
| JPCP-P51-301406 | 44±5% | 65 | 2200±10% | 560 | 2 |
| JPCP-P51-341206 | 42±5% | 65 | 3160±10% | 560 | 2 |
| JPCP-P51-341406 | 40±5% | 65 | 3000±10% | 560 | 2 |
| JPCP-P51-381505 | 37±5% | 65 | 4570±10% | 560 | 2 |
| JPCP-P51-381506 | 37±5% | 65 | 3800±10% | 560 | 2 |
Application:Ultrasonic fault detecting
Flow rate measurement
Ultrasonic transducer
Distance measurement
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.
We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
Research and development Room: www.xjcyjy.com
Equipment name: Box type resistance furnace
Electric drying oven with forced convection
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail: sales@pztceramics.com
WhatsApp:+86 13165361320
Skype:Violet Shan(violet.shan@pztceramics.com)
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
