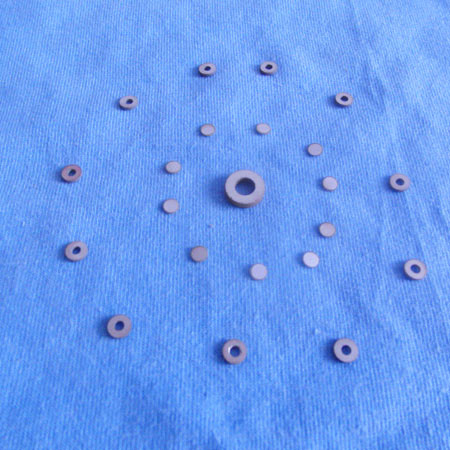

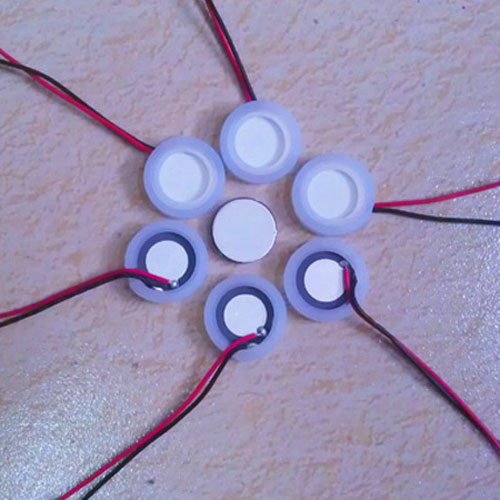

Piezoelectric Ceramic Atomizer Tablet
Ultrasonic atomizer using electronic high-frequency oscillation, through the ceramic atomizer’s high-frequency resonance to break up the structure of liquid water molecules, produce natural flowing mist, without heating or adding any chemical reagents.
Ultrasonic teeth cleaning using ultrasonic high-frequency and high-energy vibration to crush the dental calculus and tooth stains of the tooth surface through the smooth ultrasonic cleaning machine head, and then the cleaning machine produce water mist to gravel, plaque scour down.
Brand name: | JUDE |
Model No: | JDCA-PN3-160001 |
Material: | PZT |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature: High strength electrode
Long service life
Not easy to fouling
Good consistency
Models and Technical Data:
Type | Radial Frequency Fr(KHz) | Resonant Impedance Rt(%) | Coupling Constant Kp(%) | Static Capacitance C(PF) |
JDCA-PN3-160001 | 1.65±5% | ≤ 2 | ≥46 | 770±10% |
JDCA-PN3-200001 | 1.65±5% | ≤ 2 | ≥46 | 1450±10% |
JDCA-PN3-250001 | 1.65±5% | ≤ 2 | ≥46 | 1800±10% |
JDCA-PN3-200002 | 1.0±5% | ≤ 2 | ≥65 | 1800±10% |
JDCA-PN3-250002 | 1.0±5% | ≤ 2 | ≥65 | 2800±10% |
JDCA-PN3-280002 | 1.0±5% | ≤ 2 | ≥65 | 3500±10% |
JDCC-P-8-100502 | 1.0±5% | ≤ 20 | ≥35 | 280±10% |
JDCC-PN3-100502 | 1.0±5% | ≤ 20 | ≥40 | 380±10% |
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail: sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
