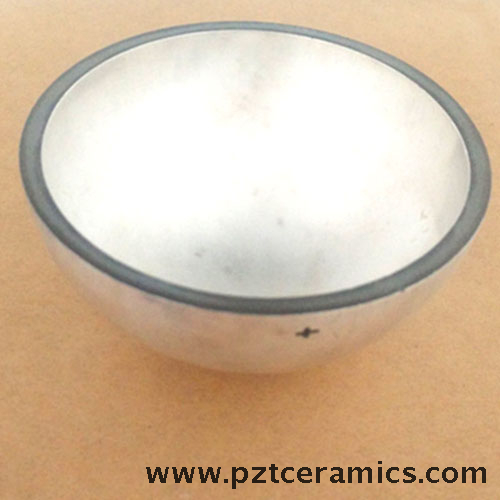

Piezoelectric Ceramic Sphere and Hemisphere Components
Piezoelectric ceramics components are electromechanical transducers. They can convert mechanical energy into erlectrical energy and vice-versa. Piezoelectric ceramics components are used in a variety of electromechanical transducer in a wide frequency range.piezoelectric ceramic shpere and hemisphere cxomponents are made by PZT-4 material, this material range is ideally suited for ultrasonic cleaning, sonar, and other high power acoustic radition applications.
Feature:Good stability
High sensitivity
Accurate measurement
Applications:All round underwater transducer
Sonar transducer
High sensitive ultrasonic surveying
Mod els and Technical Data:| Model | Radial frequency (KHZ) | Resonant impedance (Ω) | Coupling coefficient (k31)% | Capacity(PF) ±10% |
| JDCQ-P41-201700 | 90±5% | ≤15 | ≥0.35 | 7500 |
| JDCQ-P41-080600 | 575±5% | ≤15 | ≥0.30 | 850 |
| JDCQ-P41-252200 | 90±5% | ≤10 | ≥0.30 | 6500 |
| JDCQ-P41-766800 | 56±5% | ≤10 | ≥0.30 | 2200 |
| JDCQ-P41-101940 | 40±5% | ≤10 | ≥0.30 | 9500 |
Note:
1.material:PZT-4 A modified binary zirconium titanicmaterail.low dielectric loss and mechanical internal friction,a high electro-mechanical coupling factor and piezoelectric moulds.
2.size : Example: JDCQ-P41-201700 , outer diameter is 20mm ,inner diameter is 17 ,thickness is 03mm, others the same as this.
3.Prices is our favorite factory price without include express fee.
*All products can be customized according to customer requirements.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.
We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
Research and development Institute:www.xjtcyjy.com
Certifications:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
