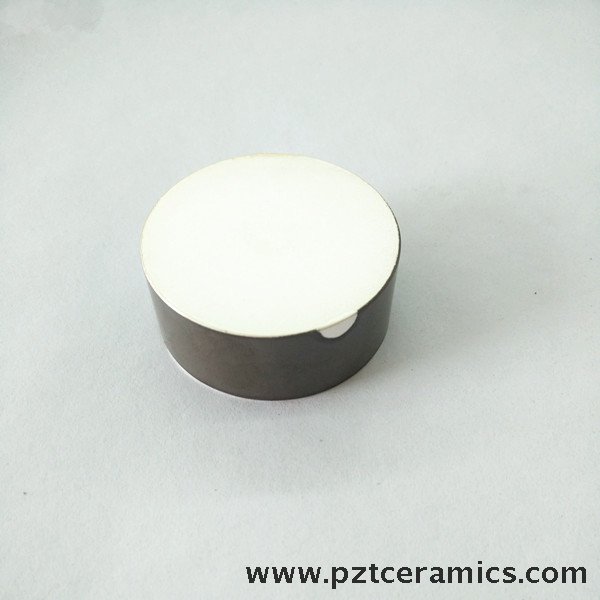

Piezoceramic Discs

Availability:

Piezoelectric Ceramic Disc Componnet

Piezoelectric ceramics are used to convert mechanical parameters, such as pressure and acceleration, into electrical parameters or, conversely, to convert electrical signals to mechanical movement or vibration.The piezoelectic disc component material is PZT-5, this material is a soft PZT material, high sensitivity or soft ceramics feature high sensitivity and permittivity, but under high drive conditions are susceptible to self heating beyond their operating temperature range. These materials are used in various pick-ups and sensors, low-power motor-type transducer, receivers, and low power generators. Suitable for applications in the fields of sensor technology, actuator technology, and air-coupled ultrasound.

IMG20170309103824_副本QQ截图20170122112643

Models and Technical Data:

Article No. Radial frequency
(khz)
Coupling coefficient
(kp%)
Capacity
C(pf)
Piezoelectric
changing
constant d33
Agent wear
Tg(%)
JDCP-P51-100002 192±5% 65 770±10% 580 2
JDCP-P51-120002 160±5% 65 1200±10% 580 2
JDCP-P51-150002 128±5% 65 2140±10% 580 2
JDCP-P51-200002 97±5% 65 3700±10% 580 2
JDCP-P51-250002 77±5% 65 5800±10% 580 2
JDCP-P51-400002 49±5% 65 14500±10% 580 2
JDCP-P51-450002 43±5% 65 19380±10% 580 2
JDCP-P51-500002 39±5% 65 23830±10% 550 2
JDCP-P51-281406 46±5% 65 1840±10% 550 2
JDCP-P51-301006 48±5% 65 2500±10% 560 2
JDCP-P51-301206 46±5% 65 2360±10% 560 2
JDCP-P51-301406 44±5% 65 2200±10% 560 2
JDCP-P51-341206 42±5% 65 3160±10% 560 2
JDCP-P51-341406 40±5 65 3000±10% 560 2
JDCP-P51-381505 37±5% 65 4570±10% 560 2
JDCP-P51-381506 37±5% 65 3800±10% 560 2

*All products can be customized according to customer requirements.

Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.

We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.

Research and Development Institute: www.xjtcyjy.com

Low temperature box type resistance furnacePlanetary ball mill

Certifications:

certification

Factory:
factory
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .


shipping
