Piezoelectric Ceramic Disc Componnet
Piezoelectric ceramics are usually used for generating ultrasonic oscillations, for example, in sensors or for high power ultrasonic applications. The shapes and dimensions of the piezoelectric ceramic can be selected with the limits determined by the tools, although the dimensions depend on each other. Piezoelectric ceramics is a polycrystalline ceramics that is made by sintering high pure powder like titanium oxide and barium oxide. when piezoelectric ceramics is exerted forcefully , it generates electric voltage, it expands or shirnks dependng on the polarity of voltage.

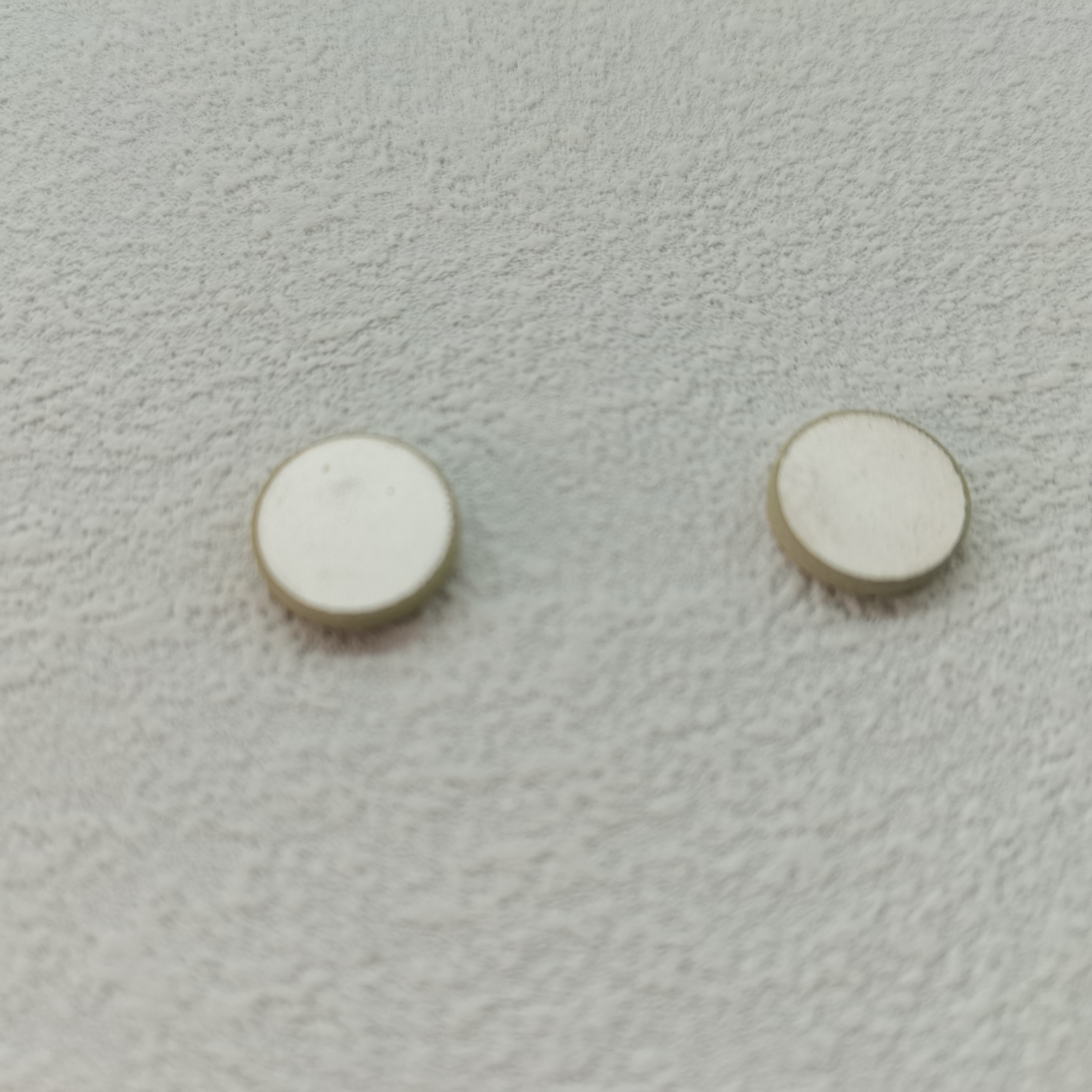

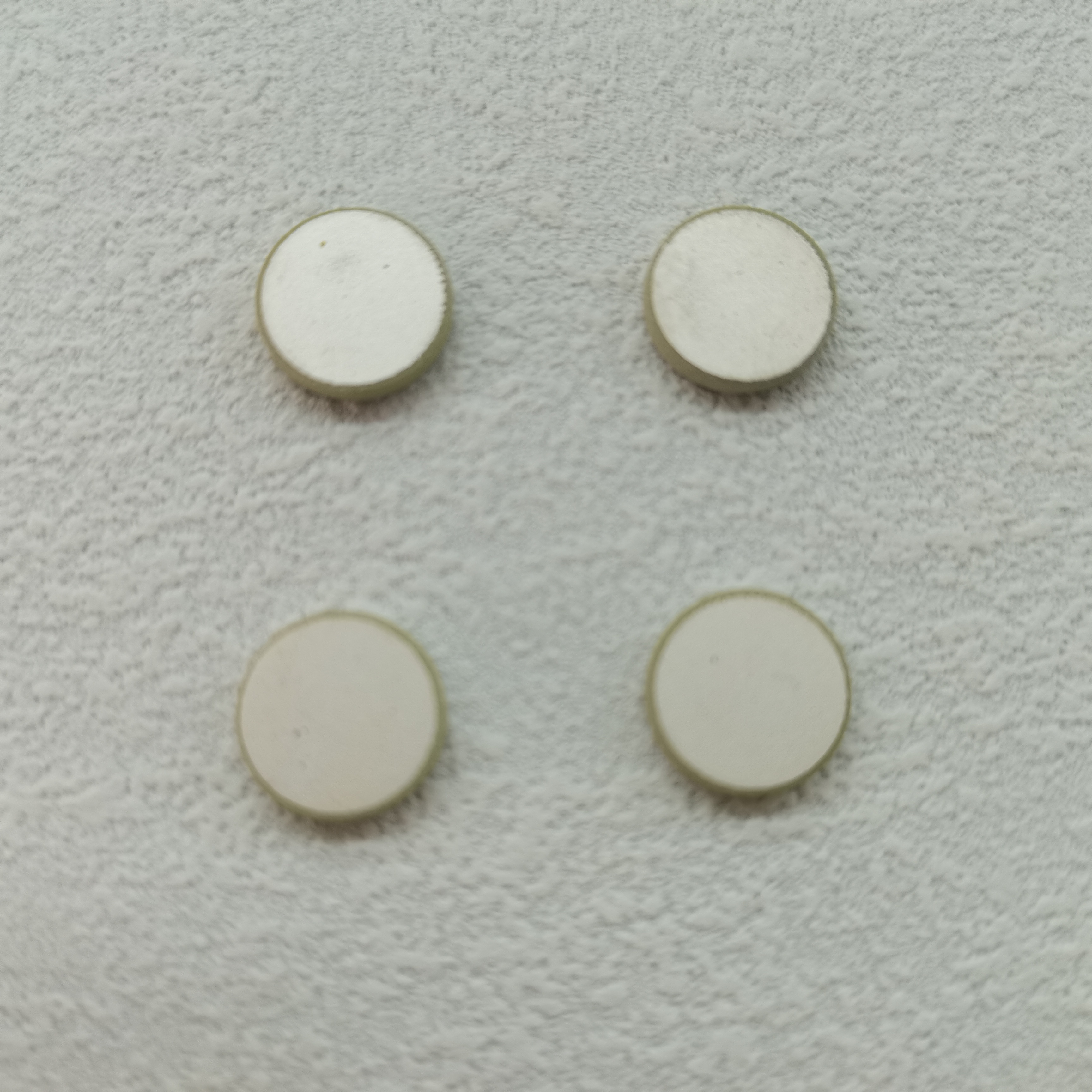

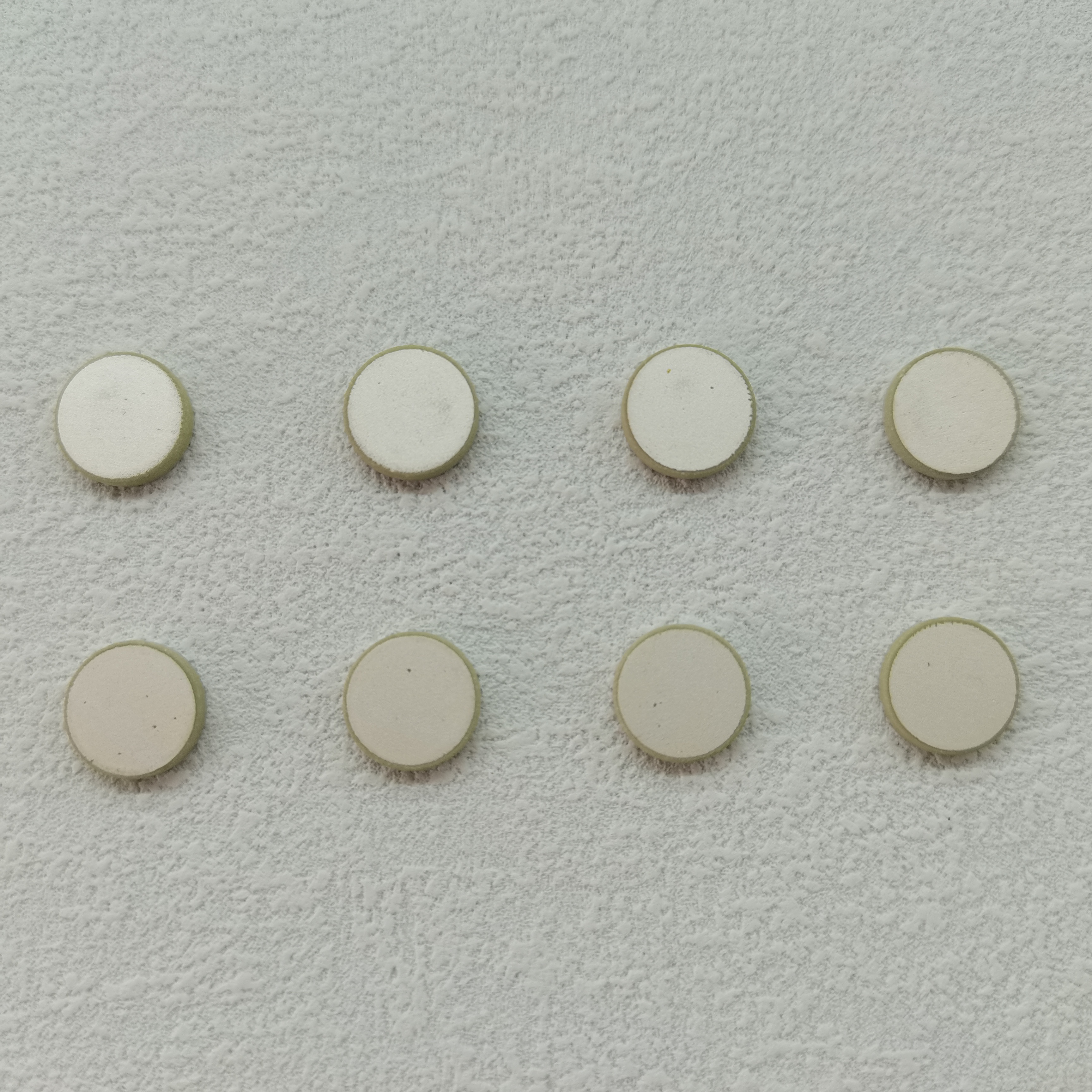

Piezoelectric Ceramic Disc With Full Surface Contact Electrode:

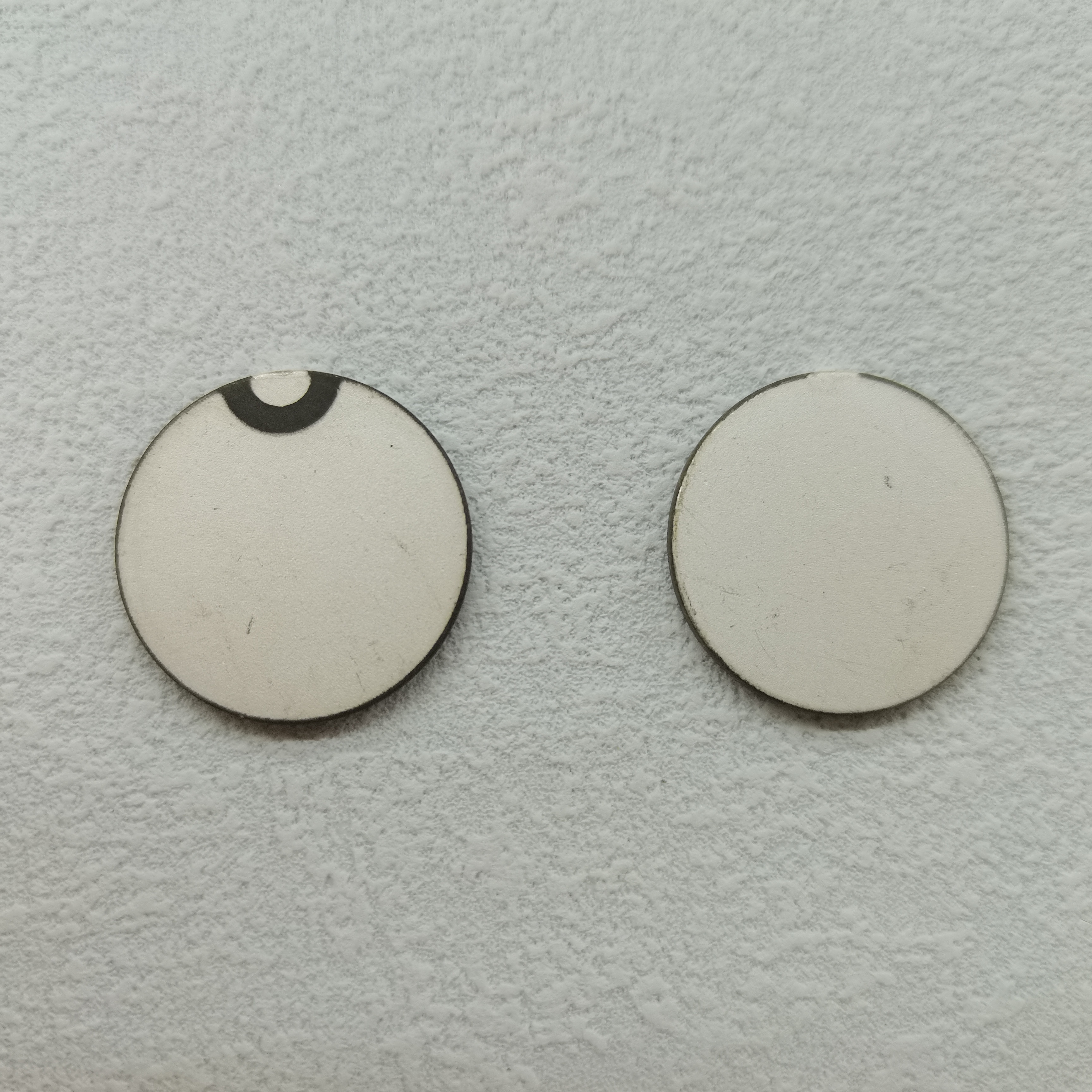

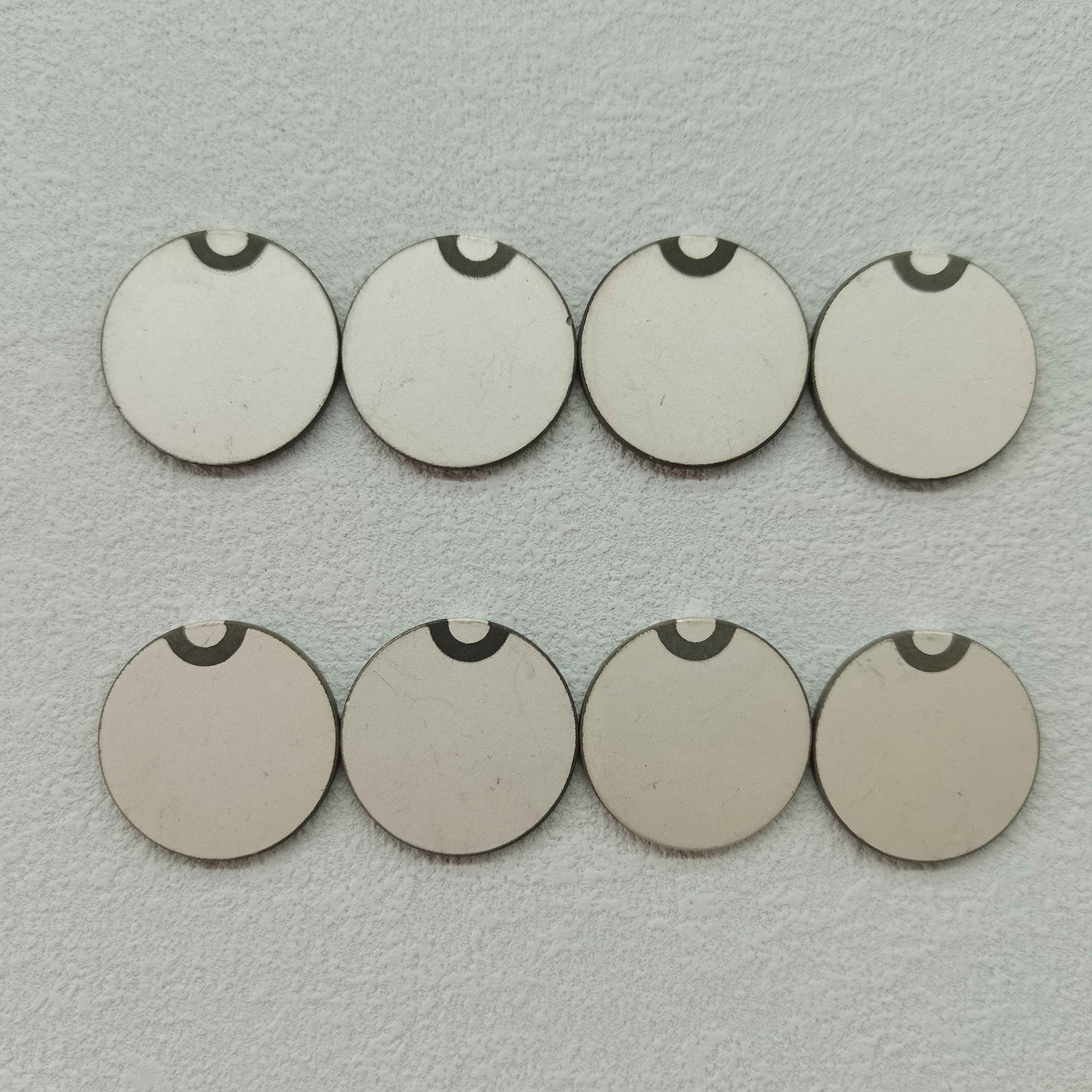

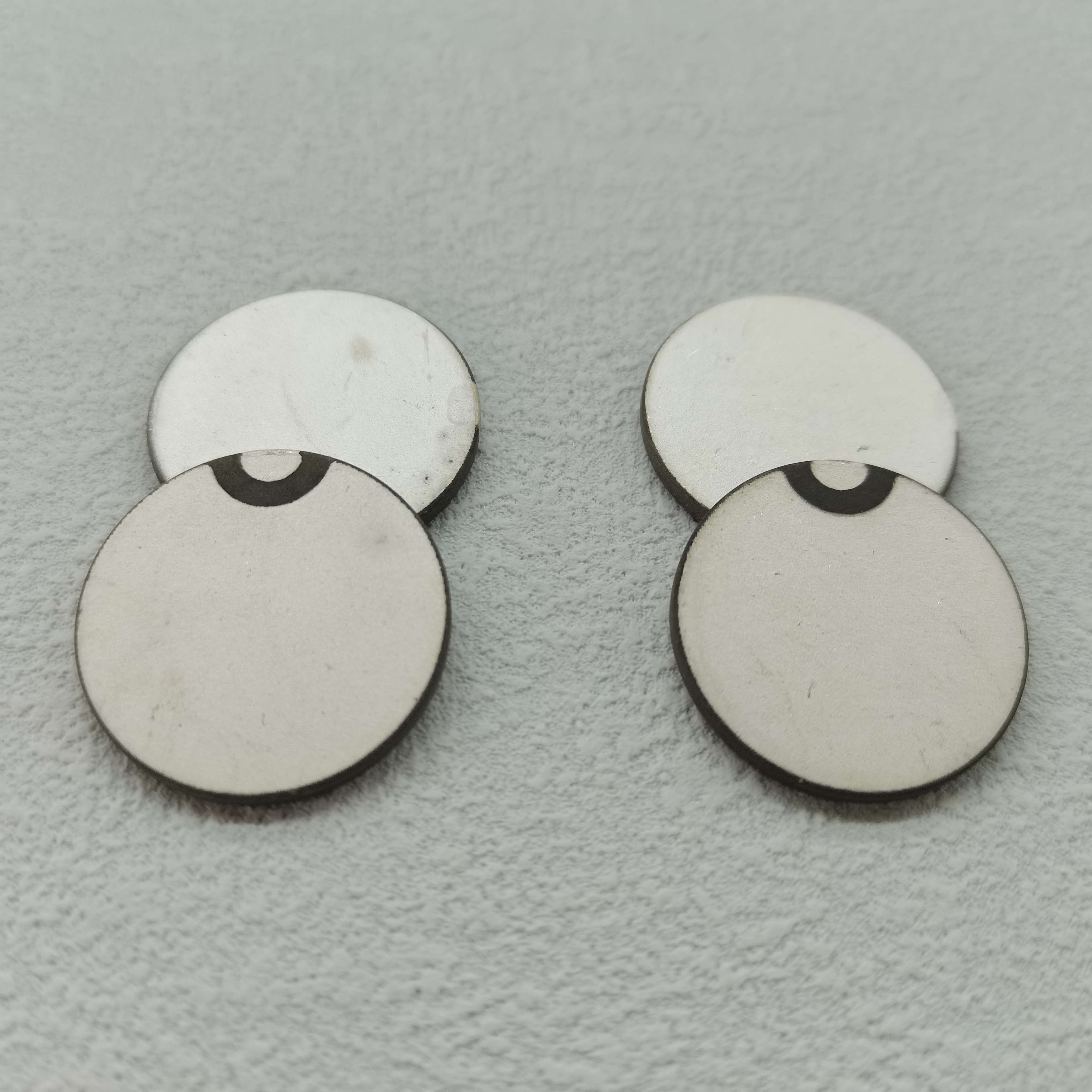

Piezoelectric Ceramic Disc With Wrap Around Electrode:
Models and Technical Data:
Dimension:
Diameter: 16mm
Thickness: 1.0mm
Material: P-53
Electrode: Full surface contact electrode
Test Reports:
| Num | Resonance frequency Fs(Hz) | Antiresonance frequency FP(Hz) | Bandwidth FP-Fs(Hz) Δf | Capacitance CT（nf） | Impedance R1(ohm) | Electromechanical coupling coefficient KP | d33 |
| 1 | 119368 | 148320 | 28952 | 4.57521 | 15.4 | 0.783 | 735 |
| 2 | 118312 | 147000 | 28688 | 5.06587 | 13.03 | 0.783 | 732 |
| 3 | 117036 | 147660 | 30624 | 4.64356 | 13.00 | 0.814 | 728 |
| 4 | 116376 | 148320 | 31944 | 5.22638 | 12.34 | 0.833 | 726 |
| 5 | 117168 | 147440 | 30272 | 4.92091 | 14.37 | 0.808 | 732 |
*All products can be customized according to customer requirements.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.
We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
Research and Development Institute: www.xjtcyjy.com
Certifications:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
