JUDE 2MHz-7MHz Spherical Cap HIFU Piezoelectric Ceramics, focusing ultrasonic sensor/transducer

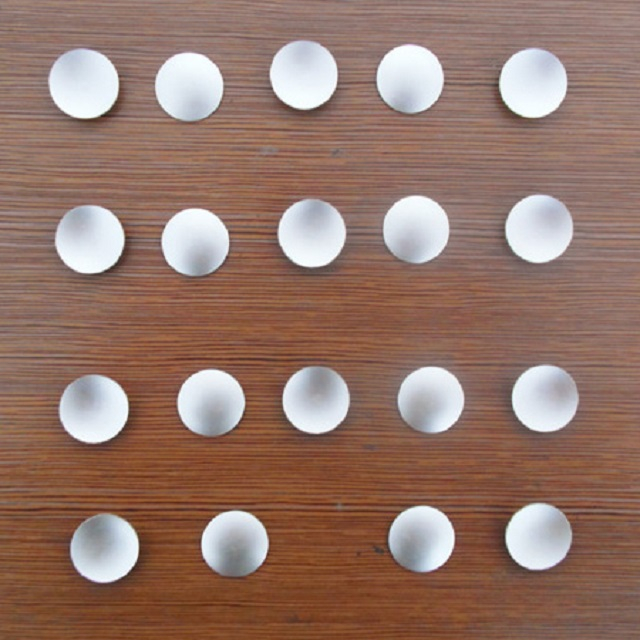

4MHz spherical cap piezoelectric HIFU ceramic focused transducer
Material type | Frequency | Electric coupling constant Kp | Piezoelectric constant d33(10-12C/N) | Capacitance C(Pf) | Agent wear
|
PZT-8 | 4MHz | ≥0.55 | ≥250 | 6000±10% | <0.5 |
7MHz | ≥0.55 | ≥250 | 8000±10% | <0.5 | |
8MHz | ≥0.55 | ≥250 | 9000±10% | <0.5 |
Stock | Yes | Certification | ISO9001 |
Uses | Medical | Type | JDA-200-01F |
Standard | R19 | Brand | JUDE |
Details:
Physical Property | Insulating | Making Method | Ceramics |
Crystal Structure | Mono-crystal | Output Signal | Numeric Type |
IP Grade | IP68 | Linearity | 0.5%(%F.S.) |
Hysteresis | 0.5%(%F.S.) | Repitition | 0.5%(%F.S.) |
Sensitivity | 120DB | Drifting | 1% |
Resolution | 1mm |
Applications: Ultrasound Fat Burning
HIFU Ultrasound Knife
Ultrasonic Dispersion
Skin Lifting
*All products can be customized according to customer requirements.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.
We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
Research and development room: www.xjtcyjy.com
Certification:
Factory:
Shipping:
Most our piezoelectric spherical HIFU ceramics delivery to our customer by air via express company, like DHL, UPS, TNT, EMS etc.
Transport time:one week can arrival customer office after send out from us.
We have enough foam inner packing and skin packing.
Contact us:
E-mail:sales@pztceramics.com
WhatsApp:+86 131 6536 1320
Skype:Violet Shan
Tel/Fax:86-0536-2221236
