JDCC-P81-120603
JUDE

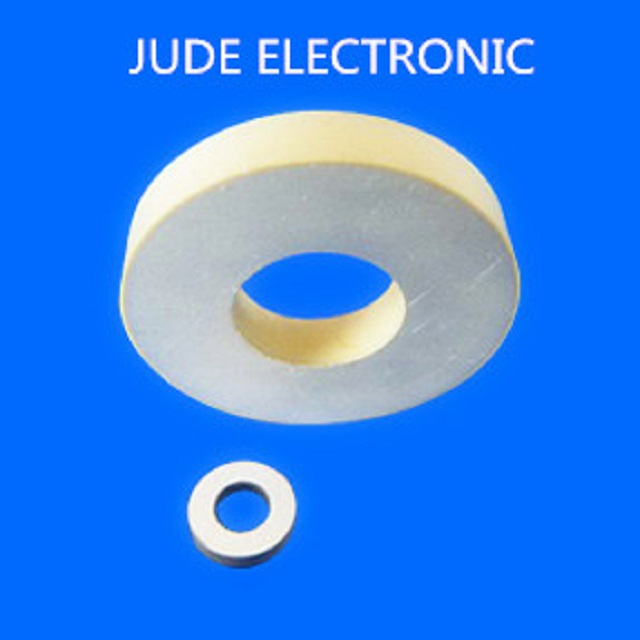

Piezoelectric ceramic components are electromechanical transducer. They can convert mechanical energy into electrical energy and vice-versa.
Specification and technical datas as following:
| Article No. | Radial frequency (khz) | Resonant impedance (Ω) | Coupling coefficient (k31%) | Capacity C(pf) | Piezoelectric changing constant d33 |
| JDCC-P81-120603 | 128±5% | ≤20 | 40 | 200±10% | 260 |
| JDCC-P81-150603 | 109±5% | ≤18 | 40 | 498±10% | 260 |
| JDCC-P81-200603 | 88±5% | ≤15 | 40 | 912±10% | 260 |
| JDCC-P81-251003 | 66±5% | ≤22 | 42 | 1310±10% | 260 |
| JDCC-P81-251006 | 66±5% | ≤24 | 42 | 660±10% | 260 |
| JDCC-P81-301506 | 50±5% | ≤20 | 40 | 850±10% | 260 |
| JDCC-P81-302004 | 44±5% | ≤18 | 40 | 1170±10% | 260 |
| JDCC-P81-351505 | 46±5% | ≤15 | 43 | 1500±10% | 260 |
| JDCC-P81-351506 | 46±5% | ≤17 | 43 | 1250±10% | 260 |
| JDCC-P81-381505 | 44±5% | ≤15 | 43 | 1800±10% | 260 |
| JDCC-P81-451506 | 39±5% | ≤12 | 43 | 1800±10% | 270 |
| JDCC-P81-500003 | 50±5% | ≤5 | 45 | 5150±10% | 270 |
| JDCC-P81-501706 | 34±5% | ≤15 | 43 | 2750±10% | 270 |
| JDCC-P81-502006 | 33±5% | ≤20 | 40 | 2600±10% | 260 |
| JDCC-P81-502306 | 32±5% | ≤20 | 40 | 2300±10% | 250 |
| JDCC-P81-603010 | 26±5% | ≤28 | 36 | 1900±10% | 240 |
| JDCC-P81-703010 | 23±5% | ≤25 | 36 | 2800±10% | 240 |
Application:
piezoelectric ceramics have a wide range of uses.such as:
oil level sensors
distance sensors
non-destructive testing
power ultrasonic transducer
Certifications:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
