JDCP-P51-100002
JUDE

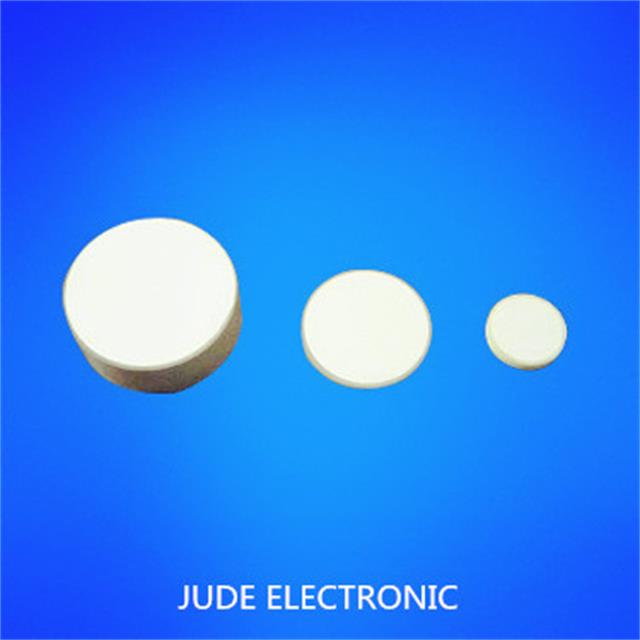

Piezoelectric ceramics are used to convert mechanical parameters, such as pressure and acceleration, into electrical parameters or, conversely, to convert electrical signals to mechanical movement or vibration.
Specification and technical datas as following:
High Sensitivity
High Kp Value
High Capacitance
| Article No. | Radial frequency (khz) | Coupling coefficient (kp%) | Capacity C(pf) | Piezoelectric changing constant d33 | Agent wear Tg(%) |
| JDCP-P51-100002 | 192±5% | 65 | 770±10% | 580 | 2 |
| JDCP-P51-120002 | 160±5% | 65 | 1200±10% | 580 | 2 |
| JDCP-P51-150002 | 128±5% | 65 | 2140±10% | 580 | 2 |
| JDCP-P51-200002 | 97±5% | 65 | 3700±10% | 580 | 2 |
| JDCP-P51-250002 | 77±5% | 65 | 5800±10% | 580 | 2 |
| JDCP-P51-400002 | 49±5% | 65 | 14500±10% | 580 | 2 |
| JDCP-P51-450002 | 43±5% | 65 | 19380±10% | 580 | 2 |
| JDCP-P51-500002 | 39±5% | 65 | 23830±10% | 550 | 2 |
| JDCP-P51-281406 | 46±5% | 65 | 1840±10% | 550 | 2 |
| JDCP-P51-301006 | 48±5% | 65 | 2500±10% | 560 | 2 |
| JDCP-P51-301206 | 46±5% | 65 | 2360±10% | 560 | 2 |
| JDCP-P51-301406 | 44±5% | 65 | 2200±10% | 560 | 2 |
| JDCP-P51-341206 | 42±5% | 65 | 3160±10% | 560 | 2 |
| JDCP-P51-341406 | 40±5% | 65 | 3000±10% | 560 | 2 |
| JDCP-P51-381505 | 37±5% | 65 | 4570±10% | 560 | 2 |
| JDCP-P51-381506 | 37±5% | 65 | 3800±10% | 560 | 2 |
Application:
Piezoelectric ceramics discs are used in a variety of many industry, such as:
Flow rate measurement
Ultrasonic fault detecting
Accelerometers
Receivers
Low power generators
Certifications:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
