The resonance frequency of 1-3 piezoelectric composites and 2-2 piezoelectric composites materials we produced can be designed from 50 kHz to 2000 kHz.

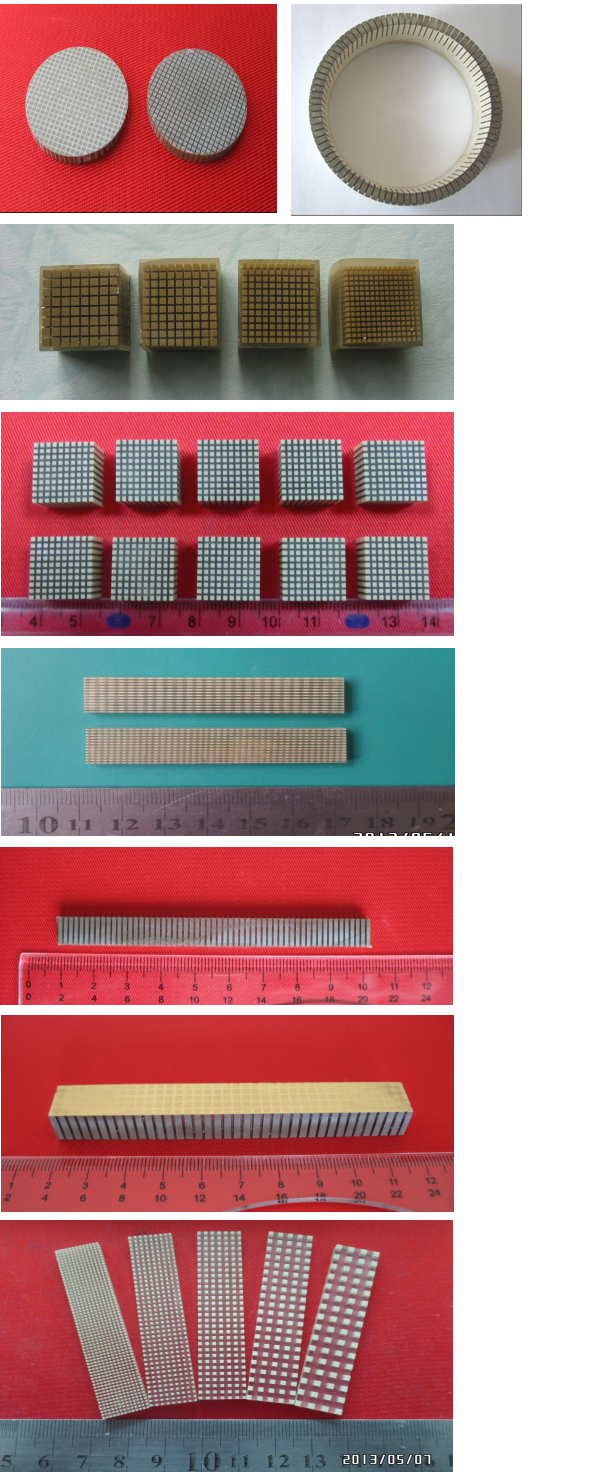

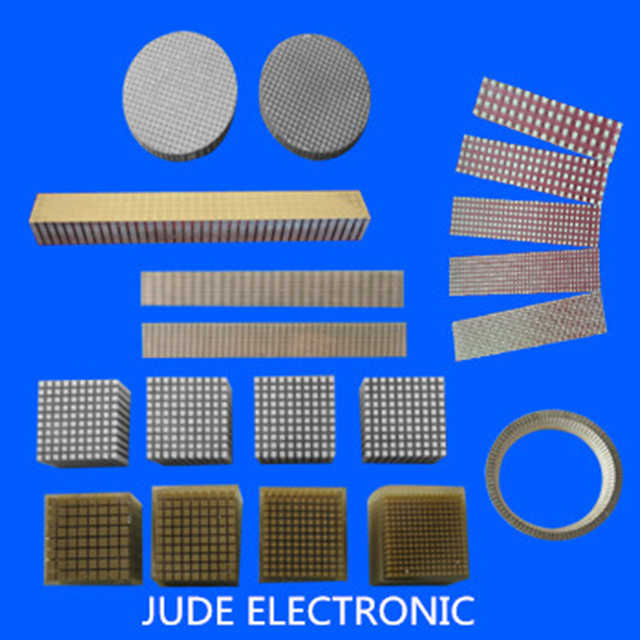

According to the requirements, we can produce multi-function and various shapes piezoelectric composite materials such as rectangle, circle, circular tube and spherical cap structure.
The various types of piezoelectric composite materials
material type | 压电陶瓷体积分数（%） | 压电应变常数d33（pC N-1） | 厚度机电耦合系数kt（%） | 机械品质因数Qm（%） | 密度ρ（gcm-3） | 声阻抗Z（Mrayl） |
UJN-PCM51 | 15-85 | 260-350 | 55-75 | 6-30 | 2.8-6.6 | 7-25 |
UJN-PCM41 | 15-85 | 140-210 | 55-78 | 135-320 | 3.2-6.8 | 8-20 |
Application:acoustic transducer
non-destructive testing probe
ocean detection sonar
Sipping:most our product delivery to customer by air via express company, like DHL, UPS, TNT, EMS etc.
Transport:one week canarrival customer office after send out from us.
The resonance frequency of 1-3 piezoelectric composites and 2-2 piezoelectric composites materials we produced can be designed from 50 kHz to 2000 kHz.
According to the requirements, we can produce multi-function and various shapes piezoelectric composite materials such as rectangle, circle, circular tube and spherical cap structure.
The various types of piezoelectric composite materials
material type | 压电陶瓷体积分数（%） | 压电应变常数d33（pC N-1） | 厚度机电耦合系数kt（%） | 机械品质因数Qm（%） | 密度ρ（gcm-3） | 声阻抗Z（Mrayl） |
UJN-PCM51 | 15-85 | 260-350 | 55-75 | 6-30 | 2.8-6.6 | 7-25 |
UJN-PCM41 | 15-85 | 140-210 | 55-78 | 135-320 | 3.2-6.8 | 8-20 |
Application:acoustic transducer
non-destructive testing probe
ocean detection sonar
Sipping:most our product delivery to customer by air via express company, like DHL, UPS, TNT, EMS etc.
Transport:one week canarrival customer office after send out from us.
