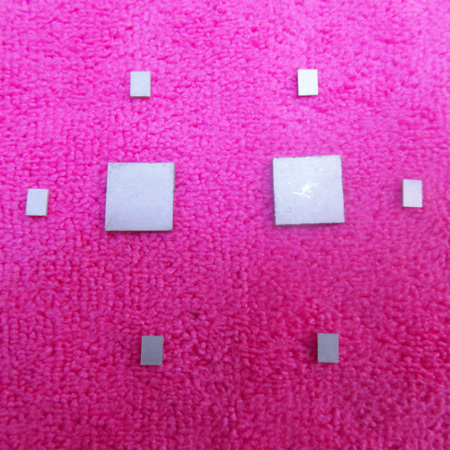

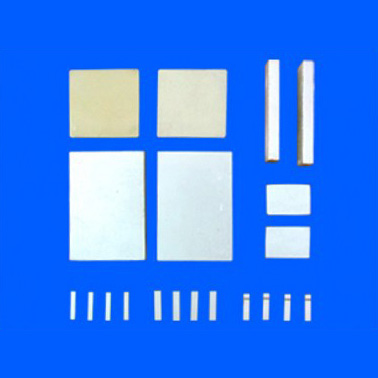

Large special-shaped piezoelectric ceramic products
Piezoelectric ceramic component has difference shape, such asspecial-shaped, disc, rings, rectangle and tube.the piezoelectric ceramics element are used for ultrasonic transducer and sensors.
piezoelectric ceramics are used to convert mechnical parameters, such as pressure and acceleration, into electrical parameters or, conversely, to convert electrical signals to mechanical movement or vibration.
| Brand name: | JUDE |
| Model No: | JDCC-1109850 |
| Material: | PZT |
| MOQ: | Negotiable |
| Payment: | T/T, L/C |
| Order Delivery Time: | Within 30 working days |
| Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Specification:
| Type | Radial Frequency Fr(KHz) | Coupling constant (d33)% | Static capacitance C(PF) | Piezoelectric changing constant d33 10-12(CN) | Agent wear Tg(%) |
| JDCQ-152139 | 150±5% | ≥0.35 | 65000±15% | >300 | <3 |
| JDCC-14313380 | 65±5% | ≥0.35 | 60000±15% | >300 | <3 |
| JDCC-1109850 | 100±5% | ≥0.35 | 55000±15% | >300 | <3 |
| JDCC-14212212 | 50±5% | ≥0.35 | 7000±15% | >300 | <3 |
| JDCD-102155 | 400±5% | ≥0.45 | 6500±15% | >300 | <3 |
| JDCD-808010 | 250±5% | ≥0.45 | 7500±15% | >300 | <3 |
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
