Item | Technical Data | Product picture | |

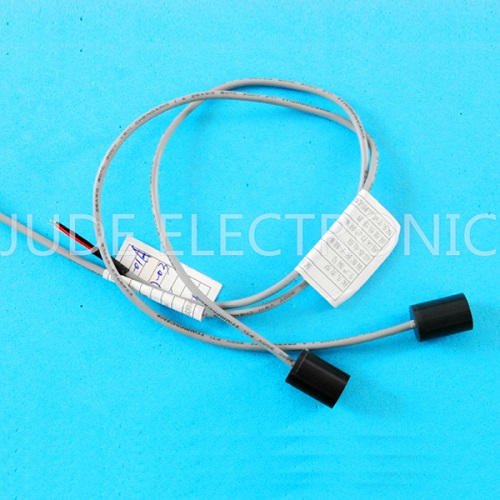

Name | 200KHz ultrasonic sensor |
| |
Type | DYA-200-01A | ||
Frequency | 200KHz±5% | ||
Recommended range | 0.10～1.5m | ||
Minimum impedance | 1005Ω±20 | ||
Capacitance | 730pF±20% @1KHz | ||
Sensitivity | Load driving voltage:850Vpp distance 0.3m Echo amplitude 40mV | ||
Operating voltage | Peak voltage＜1000VPP | ||
Operating temperature | -40～+80℃ | ||
Pressure | ≤3KG or 0.3MPa | ||
Angle | (beam width)half-power angle@-3dB:8°±2 Sharpness angle:17°±4 | ||
Shell material | POM | ||
Application | Ultrasonic level meter, monitoring, anti-collision, security | ||
Installation dimension | dimension：14*20 | ||
International Protection | IP68 | ||
Weight | 9g±5%（line lengthy：25cm） | ||
Wire instructions | Integrated interface:red:transducer+, white:transducer-, black:shielded wire,（default without temperature sensor） | ||
Admittance Curve Graph | Product Structure Drawing | ||
| | ||
Application: Ultrasound Fat Burning, HIFU Ultrasound Knife, Ultrasonic Dispersion.
*All products can be customized according to customer requirements.
