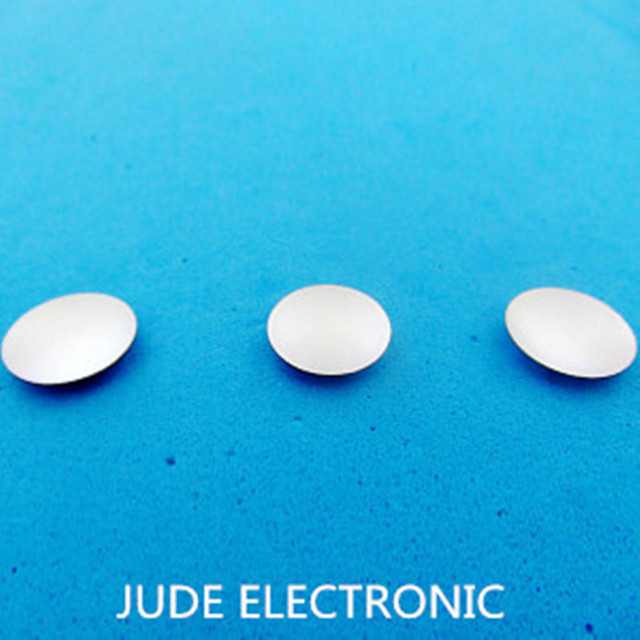

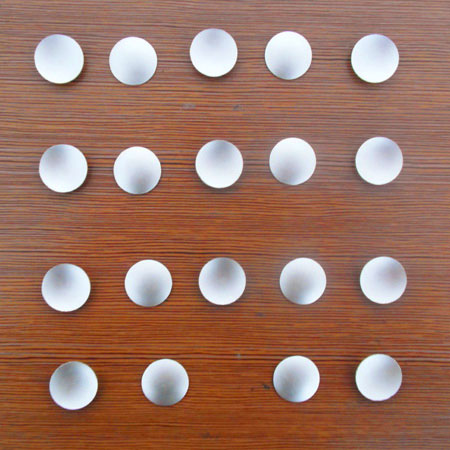

Piezoelectric Ceramic Spherical Cap for focusing sensor/transducer
Piezoelectric ceramic spherical cap is mainly used for the production of the ultrasonic beauty devices focused transducer, the material has a large transmit power, strong field loss, good stability and consistency, is the first product to produce ultrasonic focused transducer
Models and Technical Data:
Material type | Frequency | Electric coupling constant Kp | Piezoelectric constant d33(10-12C/N) | Capacitance C(Pf) | Agent wear
|
PZT-8 | 4MHz | ≥0.55 | ≥250 | 6000±10% | <0.5 |
7MHz | ≥0.55 | ≥250 | 8000±10% | <0.5 | |
8MHz | ≥0.55 | ≥250 | 9000±10% | <0.5 |
Spherical spherical cap piezoelectric ceramic transducer 3MHz
Stock | Yes | Certification | ISO9001 |
Uses | Household | Type | JDA-200-01F |
Standard | R14 | Brand | JUDE |
Details:
Physical Property | Insulating | Making Method | Ceramics |
Crystal Structure | Mono-crystal | Output Signal | Numeric Type |
IP Grade | IP68 | Linearity | 0.5%(%F.S.) |
Hysteresis | 0.5%(%F.S.) | Repitition | 0.5%(%F.S.) |
Sensitivity | 120DB | Drifting | 1% |
Resolution | 1mm |
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.
We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
