Piezoelectric ceramic sphere and hemisphere PZT-4 component
Piezoelectric ceramics PZT-4 is mainly used in the manufacture of the ultrasonic transducer, an acoustic transducer, fish detector, hydrophone, ultrasound knife, cleaning machine, content gage, and so on. In addition, it is also used in the high-tech field. It is more for people in daily life service, strive to create a better life for people.
Weifang Jude is China top 3 piezoelectric manufacturers, providing high-quality piezoelectric products.
Brand name: | JUDE |
Model No: | JPCQ-P41-252200 |
Material: | P-41 |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Product Specifications:
Dimension: OD: 25mm
ID: 22mm
Hole diameter: 4mm
Outer: negative electrode
Material: P-41
Structure: two hemisphere bonded structure

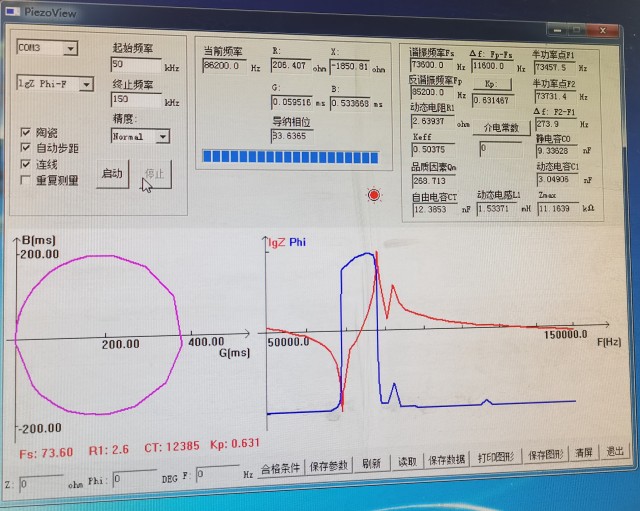

Models and Technical Data:
Num | Resonance Frequency Fs(Hz) | Antiresonance frequency FP(Hz) | Bandwidth △f | Capacitance C(PF) | Impedance CT(nF) | Electromechnical coupling coefficient Kp | d33 |
| 1 | 73800 | 83800 | 10000 | 12.16758 | 7.68 | 0.586 | 285 |
| 2 | 72480 | 82800 | 10320 | 12.11336 | 11.99 | 0.6 | 290 |
| 3 | 73320 | 83600 | 10280 | 14.19319 | 3.69 | 0.596 | 278 |
| 4 | 71280 | 83800 | 12520 | 12.89531 | 7.46 | 0.667 | 295 |
| 5 | 73920 | 84800 | 10880 | 12.10987 | 3.2 | 0.61 | 289 |
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing.
Contact:
E-mail: sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
