High Intensity Focused Ultrasound (HIFU)

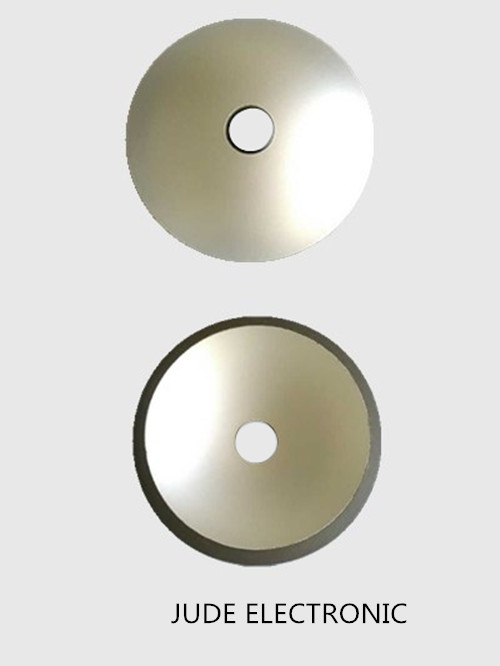

PZT Ultrasonic Beauty Devices Piezoelectric Ceramics Spherical Cap
HIFU is an early stage medical technology that is in various stages of development worldwide to treat a range of disorders.HIFU uses an acoustaic lens to concentrate multiple intersecting beams of ultrasound on a target. The mechanism is similar to using a magnifying glass to focus sunlight.
Application: used to produce ultrasonic beauty instrument focused transducer
prostate cancer treatment devices
Material Feature:Transmission power
Xiaoqiang dissipation
Stability
Consistency
This material is a good choice to produce an ultrasonic focused transducer product .
Detailed information
![QQ图片20160922090445]( "QQ图片20160922090445")
Piezoelectric Ceramics Performance Test Report
Product name |
Piezoelectric ceramics element |
Specification | Φ74.5*8.5 |
Material type | 6# |
| Num | Fs(Fz) | FP(Hz) | FP-Fs(Hz) | CT(nf) | Rl(ohm) | keff | KP | d33 |
| 1 | 243600 | 270000 | 26400 | 7.35061 | 4.24 | 0.431 | 0.524 | 360 |
| 2 | 242200 | 268000 | 25800 | 7.57302 | 1.4 | 0.428 | 0.519 | 362 |
