HIFU PZT Ultrasonic Beauty Devices

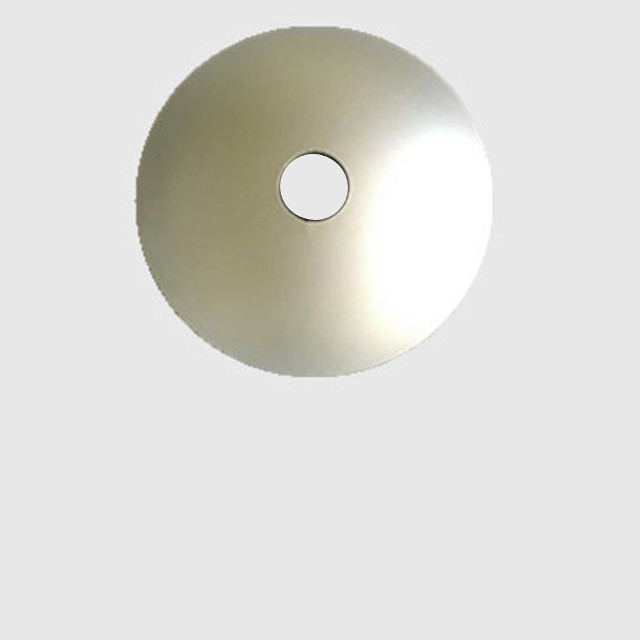

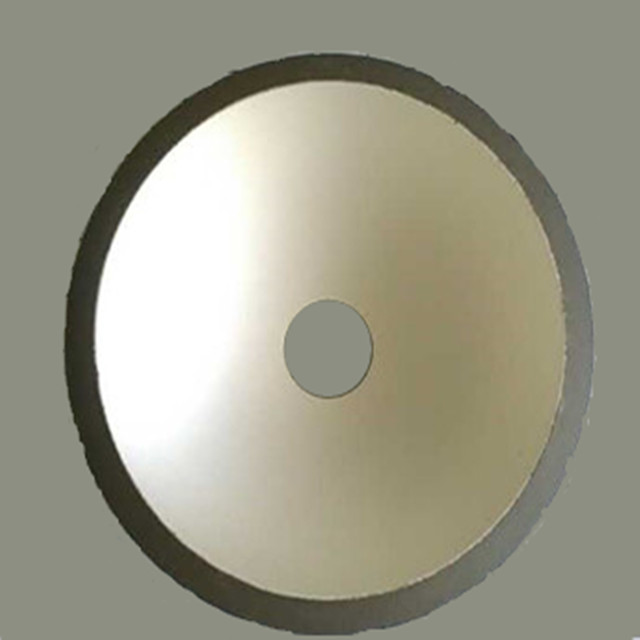

Piezoelectric Ceramics Spherical Cap
| Brand name: | JUDE |
| Material: | PZT |
| Customized: | Yes |
| MOQ: | Negotiable |
| Payment: | T/T, L/C |
| Order Delivery Time: | Within 30 working days |
| Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Material Feature: Transmission Power
Stability
Consistency
| Product name | Piezoelectric ceramics element | Specification | Φ74.5*8.5 | Material type | 6# | |||
| Num | Fs(Fz) | FP(Hz) | FP-Fs(Hz) | CT(nf) | Rl(ohm) | keff | KP | d33 |
| 1 | 243600 | 270000 | 26400 | 7.35061 | 4.24 | 0.431 | 0.524 | 360 |
| 2 | 242200 | 268000 | 25800 | 7.57302 | 1.4 | 0.428 | 0.519 | 362 |
| Product name | Piezoelectric ceramics element | Specification | Φ97.5*8.5 | Material type | 6# | |||
| Num | Fs(Fz) | FP(Hz) | FP-Fs(Hz) | CT(nf) | Rl(ohm) | keff | KP | d33 |
| 1 | 238800 | 262000 | 23200 | 13.06193 | 0.42 | 0.411 | 0.496 | 359 |
| 2 | 244160 | 262000 | 17840 | 12.76461 | 4.99 | 0.363 | 0.43 | 360 |
| 3 | 239400 | 262000 | 22600 | 12.95341 | 1.39 | 0.406 | 0.489 | 365 |
| 4 | 239040 | 262000 | 22960 | 12.99215 | 0.32 | 0.409 | 0.493 | 358 |
| 5 | 239040 | 262000 | 22960 | 13.00963 | 0.35 | 0.409 | 0.493 | 362 |
*All products can be customized according to customer requirements.
Contact us:
E-mail:sales@pztceramics.com
Tel/Fax:+86 0536 2221236
Website:www.pztceramics.com
