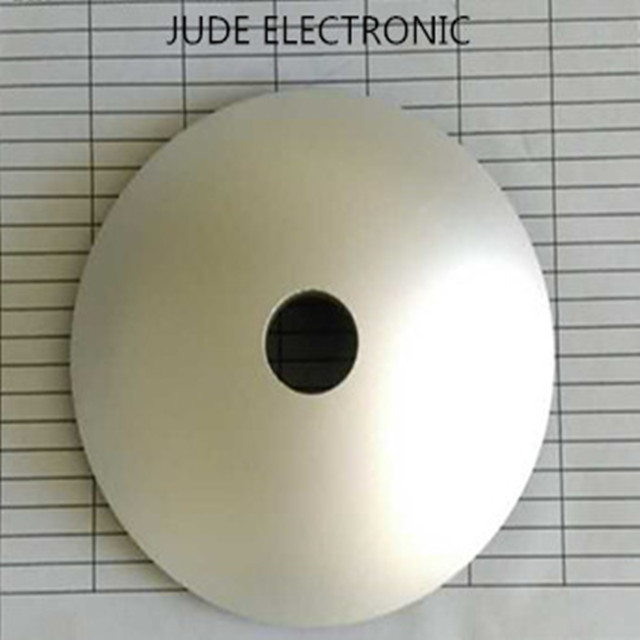

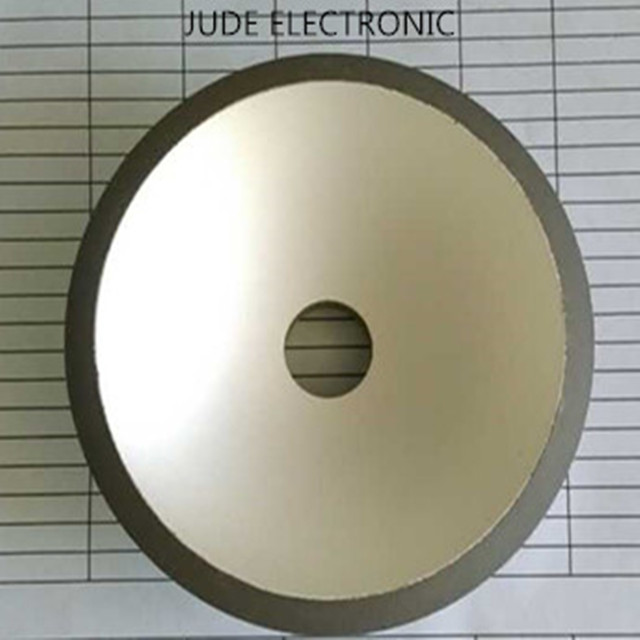

HIFU PZT Ultrasonic Beauty Devices Piezoelectric Ceramics Spherical Cap

HIFU PZT Ultrasonic Beauty Devices Piezoelectric Ceramics Spherical Cap
Availability:
Inquire Add to Basket

  • jude

HIFU PZT Ultrasonic Beauty Devices Piezoelectric Ceramics Spherical Cap

Application: used to produce ultrasonic beauty instrument focused transducer
Material Feature:Transmission power
                            Xiaoqiang dissipation
                            Stability
                            Consistency
This material is a good choice to produce an ultrasonic focused transducer product .

Detailed information

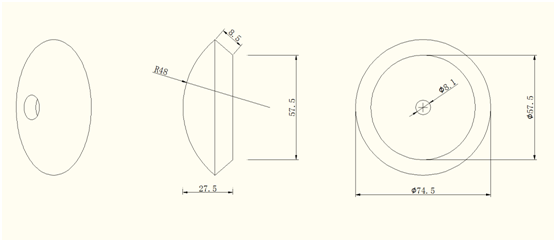

QQ图片20160922090445

Piezoelectric Ceramics Performance Test Report



产品名称
Product name
压电陶瓷元件
Piezoelectric ceramics
element
规格
Specification
Φ74.5*8.5
材料型号
Material type
6#
Num Fs(Fz) FP(Hz) FP-Fs(Hz) CT(nf) Rl(ohm) keff KP d33
1 243600 270000 26400 7.35061 4.24 0.431 0.524 360
2 242200 268000 25800 7.57302 1.4 0.428 0.519 362
