Curved Piezoelectric composite material transducer (2#) (Each column 2.5*2.5*4.35mm)

Share to:

Curved Piezoelectric composite material transducer (2#) (Each column 2.52.54.35mm)

Availability:



Inquire Add to Basket

Brand:
jude

Product Description

Curved Piezoelectric composite material transducer

Features:High electric coupling constant
  Low agent wear
        Small mechanical quality constant
  Low acoustic impedance

Applications:Transducer
Feature:High sensitivity
Wide work frequency band
Large detection range
Application: Fish finder sonar

Collision avoidance sonar

3D imaging sonar

Side scan sonar

Anti-frogman sonar

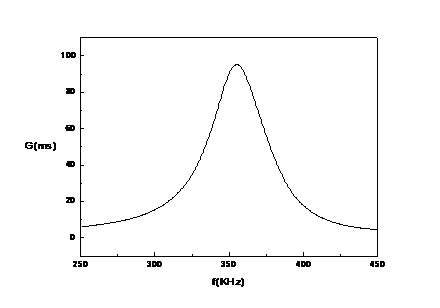

3-(2)

number	Resonant frequency	Resonance point conductance	300kHzconductance	Static capacitance
number	kHz	mS	mS	nF
2#curved piezoelectric composite material transducer	355	95	15	14.2

Directivity(@300kHz)
3-(3) 3-(4)
Horizontal directivity 2θ_-3dB=40° Vertical directivity

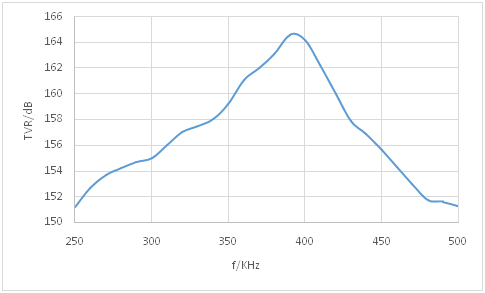

Transmitting Voltage Response
3-(5)
Center frequency 390KHz maximum transmit voltage response 165dB bandwidth50KHz
