Curved Piezoelectric composite material transducer (1#) (Each column 3*3*5mm)

Availability:
Inquire Add to Basket

  • jude

Curved Piezoelectric composite material transducer

Features: High electric coupling constant
               Low agent wear
               Small mechanical quality constant
               Low acoustic impedance
Applications:Transducer
                                 Feature: High sensitivity
                                              Wide work frequency band
                                          Large detection range
                                 Application:Fish finder sonar
                                                    Collision avoidance sonar
                                                    3D imaging sonar
                                                    Side scan sonar
                                                    Anti-frogman sonar
2-(2)

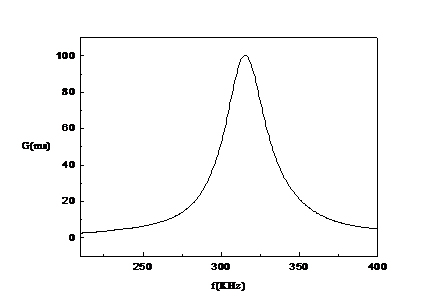

number Resonant frequency Resonance point conductance 300kHzconductance Static capacitance
kHz mS mS nF
1#curved piezoelectric composite material transducer 312.5 97.8 52.3 13.2



Directivity(@300kHz)
2-(3)2-(4)

    Horizontal directivity 2θ-3dB=33.6°                                    Vertical directivity

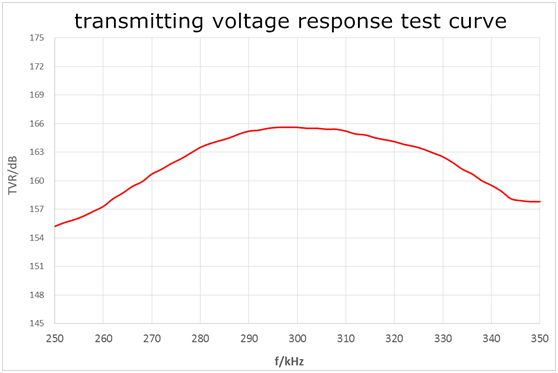

Transmitting Voltage Response

2-(6)
Center frequency 300KHz,maximum transmit voltage response 165bB,bandwidth 52KHz
