Curved Piezoelectric Composite Material Transducer (1#) (Each column 3*3*5mm)
| Brand name: | JUDE |
| Model No: | Piezoelectric composite material transducer |
| Material: | PZT |
| MOQ: | Negotiable |
| Payment: | T/T, L/C |
| Order Delivery Time: | Within 30 working days |
| Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature: High electric coupling constant
Low agent wear
Small mechanical quality constant
Low acoustic impedance
Specification:
| Number | Resonant frequency | Resonance point conductance | 300kHz conductance | Static capacitance |
| kHz | mS | mS | nF | |
| 1#curved piezoelectric composite material transducer | 312.5 | 97.8 | 52.3 | 13.2 |

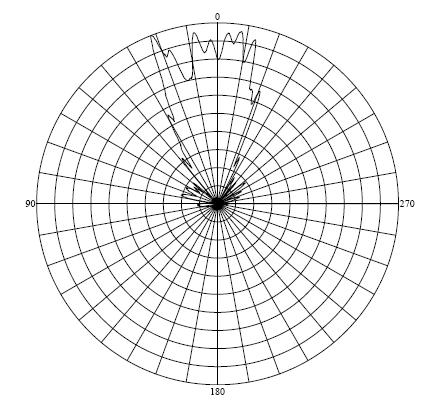

Directivity(@300kHz):
Horizontal directivity 2θ-3dB=33.6° Vertical directivity

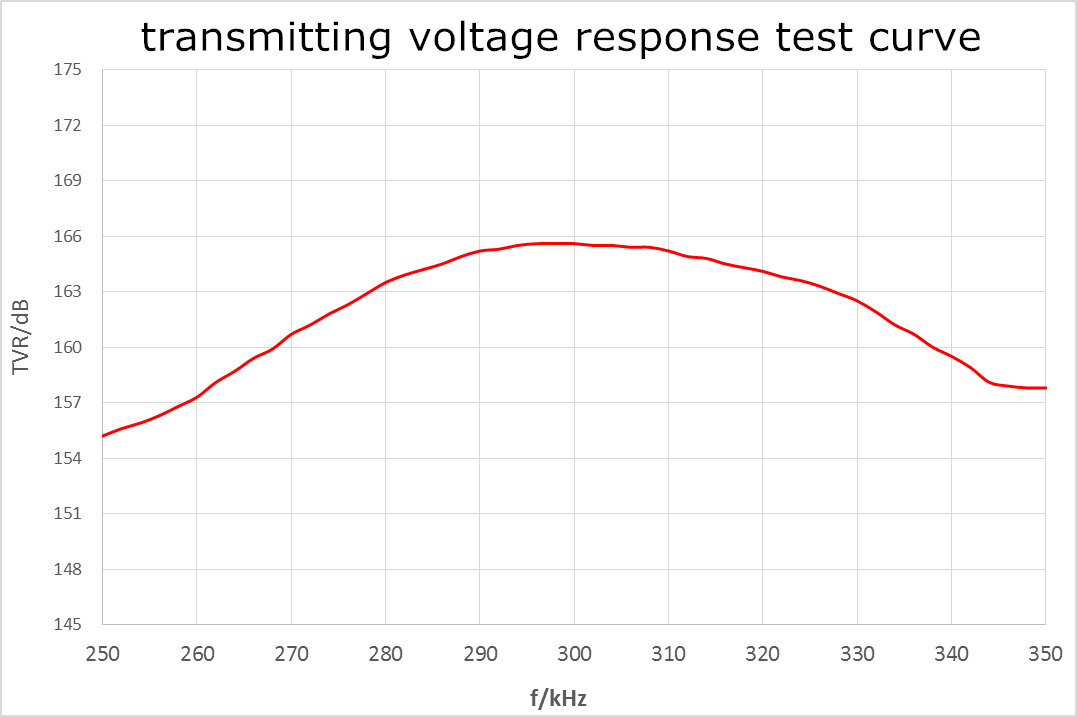

Transmitting Voltage Response:
Center frequency 300KHz,maximum transmit voltage response 165bB,bandwidth 52KHz
Application: Fish finder sonar
Collision avoidance sonar
3D image sonar
Side scan sonar
*All products can be customized according to customer requirements.
Contact us:
E-mail:sales@pztceramics.com
Tel/Fax:+86 0536 2221236
Website:www.pztceramics.com
