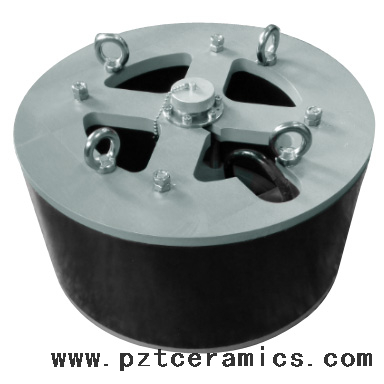

C-2800 type ring transducer
Sound is so far known to man only in the long distance transmission carrier of marine information and communication energy, acoustic technology has become an important means of underwater communication navigation, fishery, marine resources, marine geology, military weapons etc.. That is the mission of underwater acoustic transducer in a certain frequency band signal according to the forms prescribed by the excited acoustic wave and without distortion of perception and receiving water acoustic signals, the transducer has also been hailed as the image of "the eyes and ears of sonar system".
The performance parameter table 1:
Backing structure: | similar to air backing structure |
Working frequency band: | 1kHz～8kHz |
Resonant frequency: | 2.8kHz |
| Horizontal beam: | omnidirectional |
Resonance point transmission response: | 139dB re 1μPa/V at 1m |
Maximum input power: | 2000W (10% duty cycle) |
Working depth: | 400m |
Weight in air: | 20kg |
Working temperature: | -5℃～+70℃ |
Storage temperature: | -40℃～+80℃ |
The performance parameter table 2:
Backing structure: | overflow structure |
Working frequency band: | 1.5kHz～5kHz |
Resonant frequency: | 2.2kHz |
| Horizontal beam: | omnidirectional |
Resonance point transmission response: | 146dB re 1μPa/V at 1m |
Maximum input power: | 2000W (10% duty cycle) |
Working depth: | unlimited |
Weight in air: | 20kg |
Working temperature: | -5℃～+70℃ |
Storage temperature: | -40℃～+80℃ |
Application: ultrasonic acoustic transducer is used for underwater sonar transducer and marine detection.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.
We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
Research room:
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact us:
Mail:sales@pztceramics.com
WhatsApp:+86 13165361320(Violet Shan)
Tel/Fax:86-0536-2221236
Website:www.pztceramics.com
