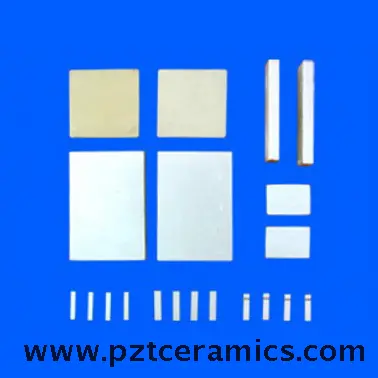

In the fields of modern industry and technology, Piezo Ceramic Plate has quickly emerged with its excellent performance and wide range of applications. Whether in ultrasound equipment, sensors, or precision medical instruments, this material plays a vital role.
Not only are piezoelectric ceramic plates known for their high sensitivity and fast response, they are also the first choice of many engineers and designers for their reliability and versatility. In this article, we'll take an in-depth look at how piezoelectric ceramic plates work, their main application scenarios, and how they stand out in increasingly complex technological requirements.
Detailed explanation of the working principle of Piezo Ceramic Plates
The core working principle of piezo ceramic plates is based on the piezoelectric effect, which is a phenomenon of converting mechanical energy into electrical energy. The piezoelectric effect is divided into direct piezoelectric effect and inverse piezoelectric effect, which together determine the function of piezo ceramic plates. The following is a detailed explanation of them:
Direct piezoelectric effect
The direct piezoelectric effect refers to the generation of electric charges in certain directions of the material when the piezoelectric ceramic material is subjected to external mechanical forces (such as pressure, vibration). This phenomenon can be used to convert mechanical vibrations into electrical signals and is the basis for the operation of sensors.
Application scenarios:
Ultrasonic sensor
Vibration monitoring equipment
Sound wave collector
Inverse piezoelectric effect
The inverse piezoelectric effect is that when the piezoelectric ceramic material is subjected to an external electric field, a small mechanical deformation will occur. This deformation can achieve precise vibration or motion control through a high-frequency electric field, which is suitable for generating ultrasonic waves and precise displacement control.
Application scenarios:
Ultrasonic generator
Inkjet printer
Precision positioning device
Material properties and work efficiency
The reason why piezoelectric ceramic plates can exhibit the above characteristics is due to their unique crystal structure. After polarization, the internal lattice structure of the piezoelectric ceramic material will be arranged in a specific direction, so that it can generate significant charge or deformation under the action of external force or electric field.
The working principle of piezoelectric ceramic plates is simple but efficient. Its core lies in the mutual conversion of mechanical signals and electrical signals through the piezoelectric effect. It is this characteristic that makes it widely used in acoustics, electronics, medical and industrial fields, and has become an indispensable part of modern technology.
Main Applications of Piezo Ceramic Plates
Piezo ceramic plates are widely used in many fields due to their high sensitivity, fast response and excellent stability. The following is a detailed analysis of their application scenarios and characteristics:
Ultrasonic equipment
Piezo ceramic plates play a core role in ultrasonic equipment. They can quickly generate high-frequency vibrations to generate ultrasonic waves and are widely used in medical and industrial fields. For example, in medical diagnostic instruments, piezo ceramic plates use ultrasonic waves to achieve non-invasive image acquisition; in industry, ultrasonic cleaning machines use their high-frequency vibrations to remove stubborn stains from the surface of parts. Its main features include high reliability and low energy consumption, which is particularly suitable for equipment that requires long-term high-frequency operation.
Sensor field
Piezo ceramic plates are used in various sensors such as accelerometers, pressure sensors and acoustic sensors due to their positive piezoelectric effect. In accelerometers, it can accurately sense tiny vibration changes for earthquake monitoring or mechanical vibration analysis; in pressure sensors, piezo ceramic plates convert applied pressure into electrical signals for precise control of industrial equipment. It has high sensitivity and wide dynamic range, and can adapt to a variety of environments from small changes to severe impacts.
Precision positioning and drive equipment
In the fields of optics and industrial automation, piezoelectric ceramic plates achieve high-precision motion control with their inverse piezoelectric effect. For example, in microscopes, piezoelectric ceramic plates are used to control the precise focus of the lens; in industrial automation, it is used for precise motion control of nano-positioning stages. The main features of this type of application are fast response, no mechanical wear and high displacement resolution, which can meet the needs of modern technology for precise control of small displacements.
Energy harvesting
Piezoelectric ceramic plates are also used in energy harvesting devices to convert vibration or pressure into electrical energy and provide green energy solutions. For example, it can be used in environmental monitoring equipment to generate electricity through natural vibration to support the operation of the equipment; in wearable devices, piezoelectric ceramic plates use human body movement to generate electricity to power the equipment. It has the characteristics of miniaturization and strong durability, which is very suitable for long-term and repetitive work scenarios.
Acoustics and vibration control
Piezoelectric ceramic plates are widely used in acoustic devices such as high-fidelity speakers, noise reduction equipment and instrument tuning. In speakers, it converts electrical signals into mechanical vibrations through the inverse piezoelectric effect, thereby producing high-quality sound; in noise reduction equipment, it can effectively offset environmental noise by utilizing its vibration characteristics. It is characterized by pure sound, flexible adjustment, and excellent acoustic performance even in high temperature environments.
About us

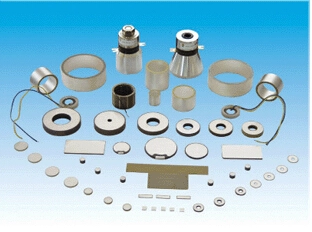

Weifang Jude is a professional piezo ceramic plate manufacturer, dedicated to providing high-quality piezoelectric materials and solutions to customers around the world.
The company has advanced production technology and a strict quality management system. Its products are widely used in ultrasonic equipment, sensors, acoustic instruments, and precision drive equipment. With its excellent R&D capabilities and customer service, Weifang Jude has become a trusted partner in the industry.
